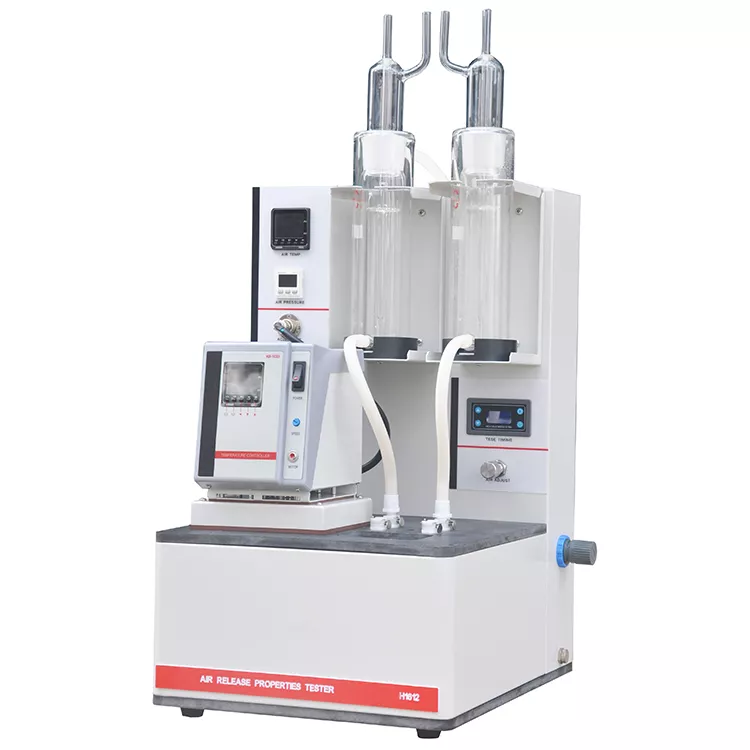

Air Release Value Apparatus GD-H1612

Features :

The Air Release Value Apparatus adopts the imported Omron PID thermostat, digital display temperature, accuracy is 0.1℃.
Digital display air pressure with needle valve adjustment.
Automatically control the blowing time, automatically record the defoaming time after the blowing, the accuracy can reach 0.01s.
Pressing type liquid circulation joint can dismantle test tube quickly and conveniently.
Safety protection device to prevent the liquid level from being too low.
Two sets of constant temperature test can be conducted at the same time.
Sputtering multi-channel liquid circulator can ensure the temperature uniformity of each point.

Specifications :

Model No.	GD-H1612 ARV Air Release Value Apparatus
Applicable standards	SH/T0308, ASTM D3427, IP323
Heating method	Electric rod heating
Temperature control method	PID temperature controller
Temperature control range	Normal temperature ~ 80±1℃
Working pressure	19.6Kpa
Pressure control	Precision pressure regulator adjustment
Timing method	Digital display timer
Pressure display	Digital meter display
Total power	1500W
Dimensions	340mm400mm560mm
Net weight	25KG
Power supply	AC220±10%, 50Hz±5%

Catalog : PDF
