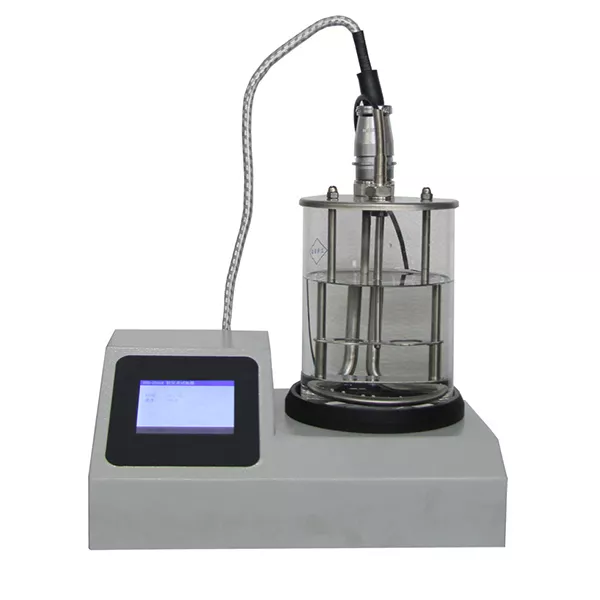

Asphalt Softening Point Tester GD-2806E

Asphalt Softening Point Tester GD-2806E

Features :

The Softening Point Tester adopts microcomputer control technology, linear heating and automatic stirring working mode, it can determine two samples at a time and can show test result automatically.
The beaker is made of high-temperature resistant glass. It meets standard requirements, including heating rate, steel ball locating ring, steel ball, etc.
An automatic stirrer is equipped in the bath. LED shows time and temperature. It can test two samples at a time. Easy to use.
The maximum heating temperature of the water bath is 90℃.

SKU: GLD-GD-2806E-Asphalt Softening Point Tester Category: Lab Equipment Tags: Asphalt Point Tester, Asphalt Point Tester GD-2806E, Asphalt Softening, Asphalt Softening GD-2806E, Asphalt Softening Point Tester, Asphalt Softening Point Tester GD-2806E, GD-2806E, Point Tester, Point Tester GD-2806E, Softening Point Tester, Softening Point Tester GD-2806E

Specifications :

Model: GD-2806E.
Power supply: AC 220V (-5%~10%), 50 Hz.
Measurement range: 5.0 ℃~90±0.5 ℃; or 5.0 ℃~75±0.5 ℃ (You should use low temperature water for measurement at 5.0 ℃~ambient temperature).
Temperature resolution: 0.01 ℃.
Stirrer: Its speed can be continuously adjusted.
Heating rate: It will be 5.0±0.5 ℃/min after 3 minutes in the measurement state.
Heating power: 800 W.
Capacity of beaker: 1000 ml.
Environment: The working temperature should be lower than 35 ℃ and keep stable and without air convection.
Relative humidity: ≤ 85%.
Maximum power consumption: 850 W.
Dimension: 210mm*350mm*400mm (Length * width * height).
