Specifications:
| Spherical | -20 – 20D (VD=12) 0.125D Step |
| Cylinder | -8 – 8D 0.125D step |
| Axis | 0-180° 1° step |
| Pupil distance | 45-88mm, 1mm step |
| VD | 0mm,12mm, 13.75mm |
| Min. pupil size | 2.0mm |
| Keratometry | |
| Radius of curvature | 5.0-10mm (increment:0.01mm) |
| Corneal Power | 33.75-67.50D (when corner equivalent refractive index is 1.337) |
| Increment selectable from 0.12,0.25D | |
| Corneal astigmatism | 0.00-8.00D (Increment selectable from 0.12,0.25D) |
| Axis | 1-180D (increment :1°) |
| Corneal diameter | 2.0 -14mm (increment:0.1mm) |
| Memory of data | 10 measure value for each right and left eye |
| Others | |
| Chart | Follow-up Colorful Fogging Chart System |

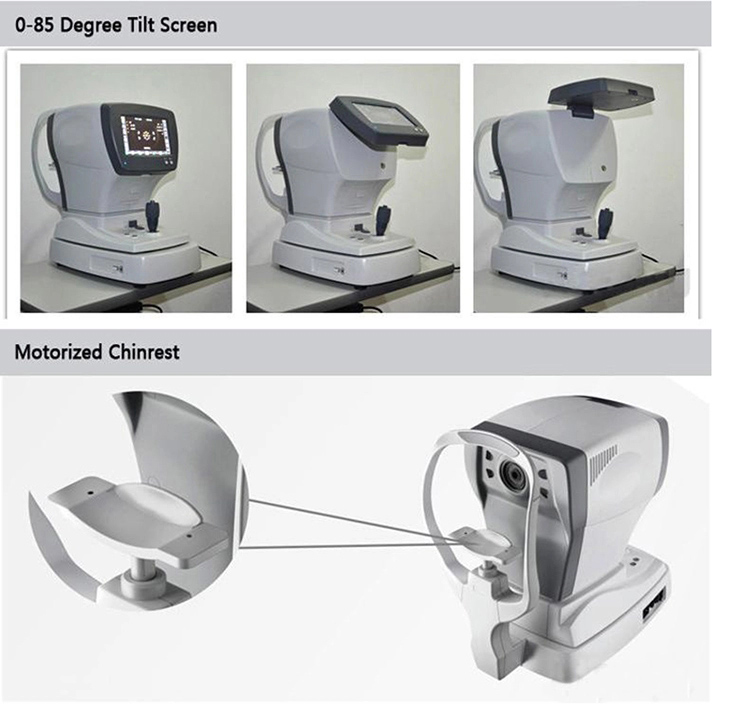

| Display | 7” TFT LCD |

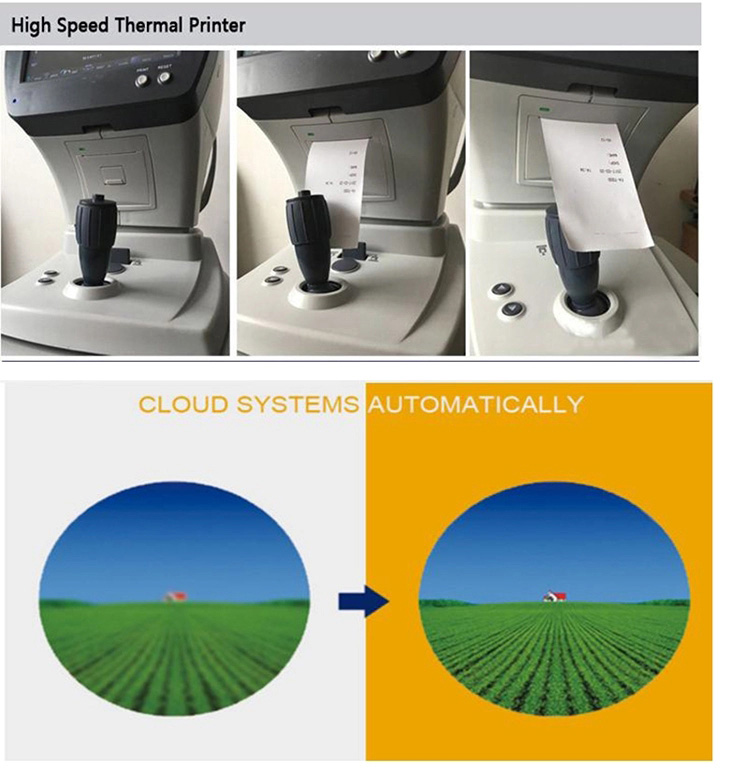

| Thermal printer | |
| Power supply | 100 – 240V 50/60HZ |
| Dimension | 476x268x472mm |
| Weight | 20kg (44lb) |
Catalogue: PDF
