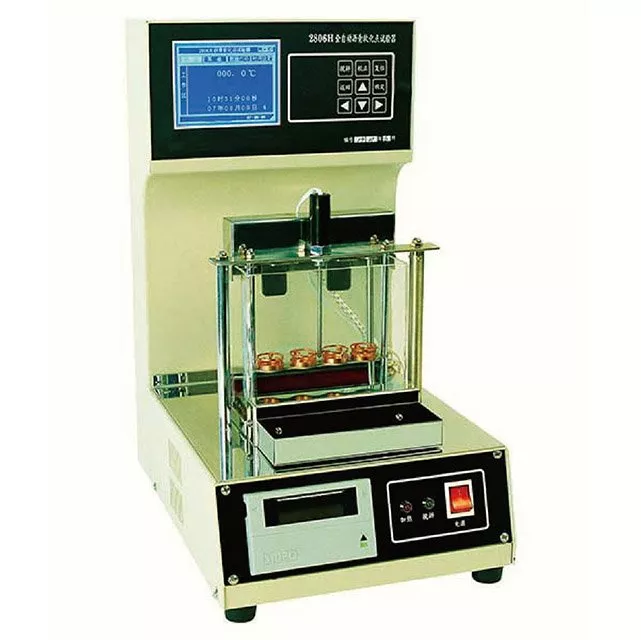

Automatic Softening Point Tester GD-2806H
GOLD

Automatic Softening Point Tester GD-2806H

Features :

1. Soften Point Tester adopts micr℃omputer to control the test. Automatically stir, linear heating, automatically get the result and automatically print the test result.
2.The beaker adopts high temperature resisting glass material. The sizes of steel ring and ball can meet test standards.
3.  Small desktop structure. LCD display. Light touch panel. It can determine four samples at a time. Easy to use and results reliable.

SKU: GLD-GD-2806H-Automatic Softening Point Tester Category: Tags: , , , , , , , , , , , , , , , , , ,

Specifications :

Model GD-2806H
Power supply AC 220V (-5%～+10%), 50 Hz
Measurement range 32 ℃～160 ℃.
(1) Heating medium: distilled water (softening point under 80 ℃)
(2) Heating medium: glycerin (softening point over 80 ℃)
Temperature resolution 0.01 ℃
Cubage of beaker 1000 ml
Stirrer the stirring speed can be adjusted continuously
Heating rate  it will be adjusted to 5.0±0.5 ℃/ min automatically after three minutes
Heating power 600 W
Test result  LCD screen shows results and printer to print.
Ambient temperature  The temperature shall be lower than 35 ℃ and keep stable. There shall not be any airflow
Relative humidity ≤85%
Maximum power consumption 700 W
Test samples 4 samples

Catalog : PDF

Brand

GOLD
