Specifications:
Applications

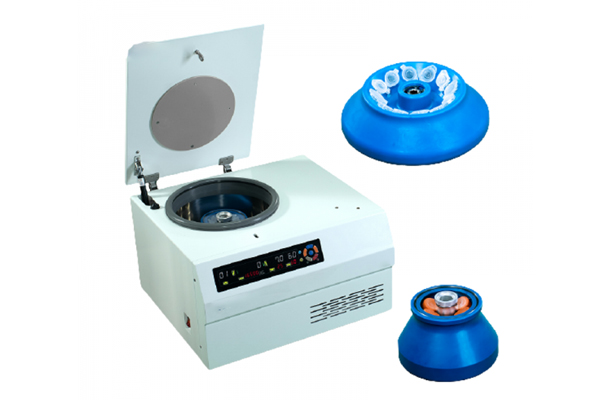

TP3-16KR desktop high-speed refrigerated centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and etc. It is an indispensable instrument for centrifugation at hospitals, research institutes and universities.
Technical Parameter
|
Model
|
TP3-16KR
|
|
Max RPM
|
16500rpm
|
|
Max RCF
|
18757×g
|
|
Max Capacity
|
6×50ml
|
|
Timer
|
1min～99min
|
|
Revolutions/min
|
±10r/min
|
|
Temp Range
|
-20℃～40℃
|
|
Temp Accuracy
|
±1.0℃
|
|
Voltage
|
AC 220±22V 50Hz 15A
|
|
Power
|
800W
|
|
Noise Level
|
≤ 60dB（A）
|
|
Chamber Diameter
|
Φ280mm
|
|
Dimensions (L x W x H)
|
480×560×360 (mm)
|
|
Packaging Dimensions
|
640×660×470(mm)
|
|
Net Weight
|
70kg
|
|
Rotor
|
No
|
Capacity
|
MAX RPM/MAX RCF
|
RCF(×g)
|
|
Angle Rotor
|
1
|
12×1.5/2.2ml
|
16500rpm/18360×g
|
18360×g
|
|
2
|
12×5ml
|
15000rpm/15940×g
|
15940×g
|
|
|
3
|
24×1.5/2.2ml
|
14000rpm/18757×g
|
18757×g
|
|
|
4
|
12×10ml round bottom
|
12000rpm/14800×g
|
||
|
5
|
6×50ml/ round bottom
|
11000rpm/12840×g
|
||
|
6
|
6×50ml/Sharp bottom
|
11000rpm/12840×g
|
||
|
Elisa plate Rotor
|
7
|
2x2x48 Hole
|
4200rpm/1900×g
|
Catalogue: PDF
