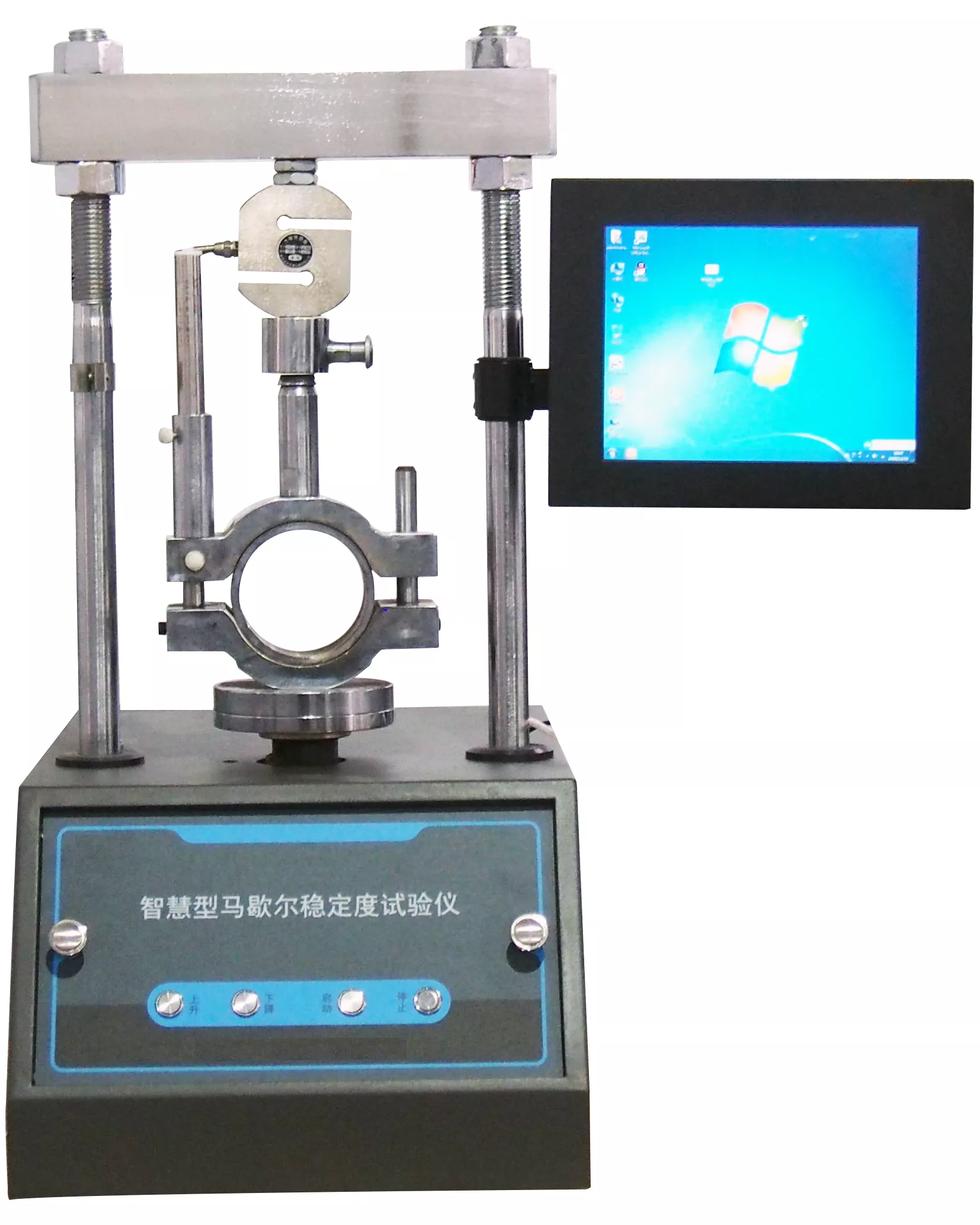

Lab EquipmentBituminious Mixtures Marshall Stability GD-101H
Features :
- Computer-industrial control all-in-one machine control, automatic data collection, and can be connected to the uploading platform.
- The control device collects test data on the stability and flow value of the test piece, and automatically judges the peak value.
- The liquid crystal display can directly display the test data, curve and test time of the stability value and flow value.
- The display test effect is intuitive, and 100 sets of test data and test time can be stored inside.
- This machine is equipped with RS232 serial communication port, which is convenient for communication with the host computer.
- It has the functions of manual control of ascending, descending and stopping.
Specifications :
- GD-101H.
- Maximum load: 50KN.
- Measuring range of stability measurement sensor: ≤40KN.
- With overload protection function when the load value is greater than 39KN.
- Asphalt mixture stability measurement error: ≤±0.1KN.
- Vertical deformation (flow value) measurement range: 0 ~ 20mm, measurement error ≤ ± 0.05mm.
- Press rising speed: 50±5mm/min.
- Ambient temperature: 5～35℃.
- Relative humidity: ≤80%.
Catalog : PDF
