CBFI 10 Ton Per 24h Automatic Block Ice Machine

Features:

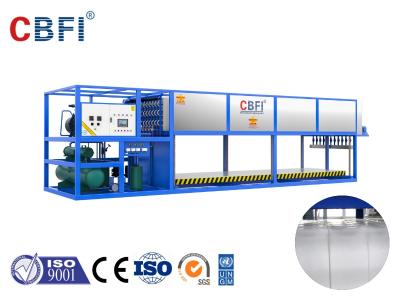

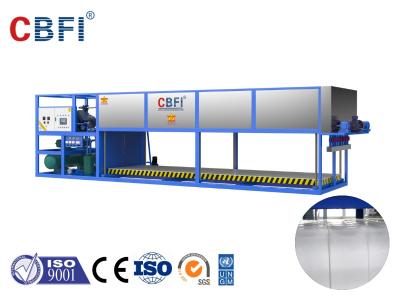

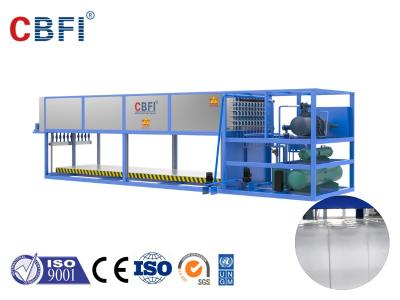

CBFI ABI100 10 ton per 24h block ice machine

CBFI Automatic Block Ice Machine Advantages

About ABI100 10 tons automatic ice block machine, It uses fully automatic operation to add water, make ice, and collect ice without the need for manual labor. There is no need to add brine.
Daily Capacity: 10 ton 24 hrs
1. Efficient heat exchange, environmental protection and safety

2. Automatic water replenishment, automatic deicing

3. The ice blocks are clean and hygienic, up to edible standards

Machine Detail

Specifications:

Parameters

ABI100 Automatic Block Ice Machine Parameters
Name	Unit	Parameter
Hanbell Compressor Parameter	Model	RC2-200B
	Cooling Capacity（kW）	98.3
	Power（kW）	39.1
Condensing Temperature	Degree Celsius（℃）	38
Evaporating Temperature	Degree Celsius（℃）	-15
Ambient Temperature	Degree Celsius（℃）	28
Water Temperature	Degree Celsius（℃）	16
Refrigerant		R22
Voltage	V/P/HZ	380/3/50
Lifting Motor	Power（kW）	4
Cooling Tower	Power（kW）	1.5
Cooling Pump	Power（kW）	4
25kg Block Ice	Ice Dimension LWH(mm)	315120760
25kg Block Ice	Machine Dimension LWH(mm)	810021402300
30kg Block Ice	Ice Dimension LWH(mm)	305145760
30kg Block Ice	Machine Dimension LWH(mm)	1020022002300
50kg Block Ice	Ice Dimension LWH(mm)	435150850
50kg Block Ice	Machine Dimension LWH(mm)	900022402500
