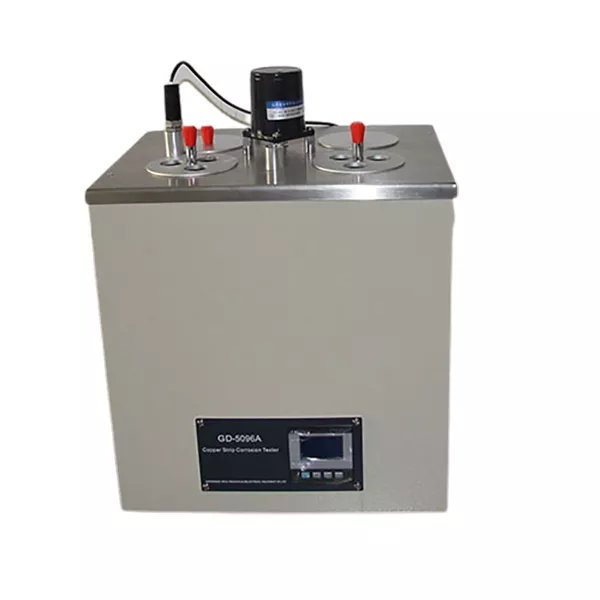

Copper Strip Corrosion Tester GD-5096A

Features :

1. This instrument is a kind of multifunctional tester. It has high performance cost ratio.
2. It adopts LCD temperature controller, heater and electric stirrer to form the constant bath. The temperature in bath is uniform. The temperature controller has timing function. It can control the test time and automatically timing.
3. The instrument equips a standard color board imported from USA. It can meet requirements of test method.

Specifications :

Model GD-5096A
Power supply AC (220±10%) V, 50Hz
Temperature sensor Pt100
Temperature range (0~100)℃
Temperature control accuracy ±1℃
Temperature display mode LED
Temperature control heating power 600W
Auxiliary heating power 1000W
Time controlling range 1 minute~24 hours
Time display LED
Sample testing positions Four positions
Ambient temperature Room temperature~35 ℃
Relative humidity ≤ 85%
Maximum power consumption 1800 W

Catalog : PDF
