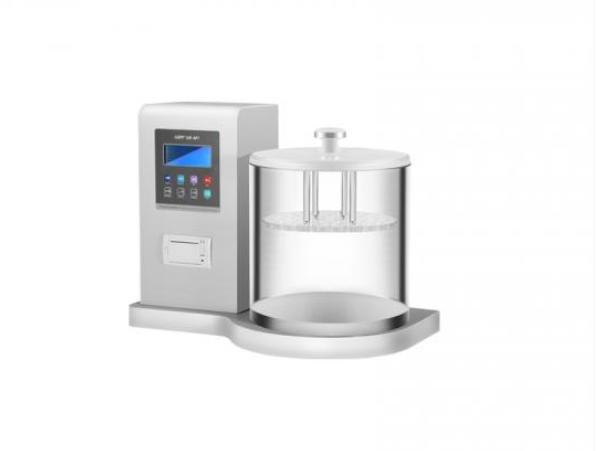

Electronic Leakage Tester GB-M1
GBPI Testing Instruments

Electronic Leakage Tester GB-M1

Features :

· Compressed air，pneumatic drive.
· Wholly automatic, auto vacuum and keep for set time at set pressure, auto stop and return.
· Can manually pause and stop.
· LCD display test data and working status.
· Built-in printer can print report with date.

SKU: GBPI-GB-M1-Electronic Leakage Tester Category: Tags: , , , , , , ,

Specifications :

Items Technical Parameters
Vacuum degree 0 ～ -95kPa
Vacuum precision ±1KPa
Vacuum keeping time 0.1 ～ 9999.9s
Sample size ф300×350 mm
Intake pressure 0.7~0.8 Mpa
Consumption of compressed air 20 L/min
Instrument size Controller:
580(L)×345(B)×440(H)mm
Effective size of vacuum chamber：
Ø270 × 270mm
Net weight 12kg
Ambient temperature 10~40°C

Catalog : PDF
