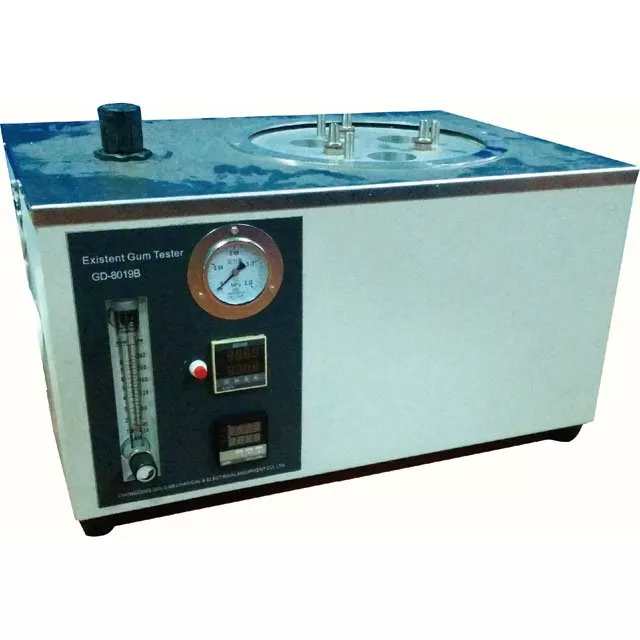

Existent Gum Tester GD-8019B

Features :

1. It equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample wells. A pressure gauge shows the flow rate when steam vaporizing medium is used. A ball float type flowmeter shows the flow rate when air vaporizing medium is used. It can determine 3 samples at a time.
3. The instrument is desktop structure. Simple design and easy to operate.

SKU: GLD-GD-8019B-Existent Gum Tester Category: Tags: , , , , , ,

Specifications :

Model GD-8019-B
Power supply AC(220±10%)V, 50Hz, 2.5kW
Test wells 3 wells
Operating temperature 1) Test bath temperature is (232～246)℃ and test well temperature being (229～235)℃ for steam bath.

2) Test bath temperature is (160～165)℃ and test well temperature being (150～160)℃ for air bath
Temperature control Automatic
Temperature display Digital
Flow display Pressure gauge shows flow rate when steam vaporizing medium is used. Ball float type flowmeter shows flow rate when air vaporizing medium is used
Working pressure of air reducing valve 0.035MPa (for air vaporizing medium)
Gas source Electrical heating steam generator for steam vaporizing medium. Air compressure for air vaporizing medium, over (1000±150)ml/s.
Overall dimension 640mm×480mm×340mm(Thermometer holder is not included)

Catalog : PDF
