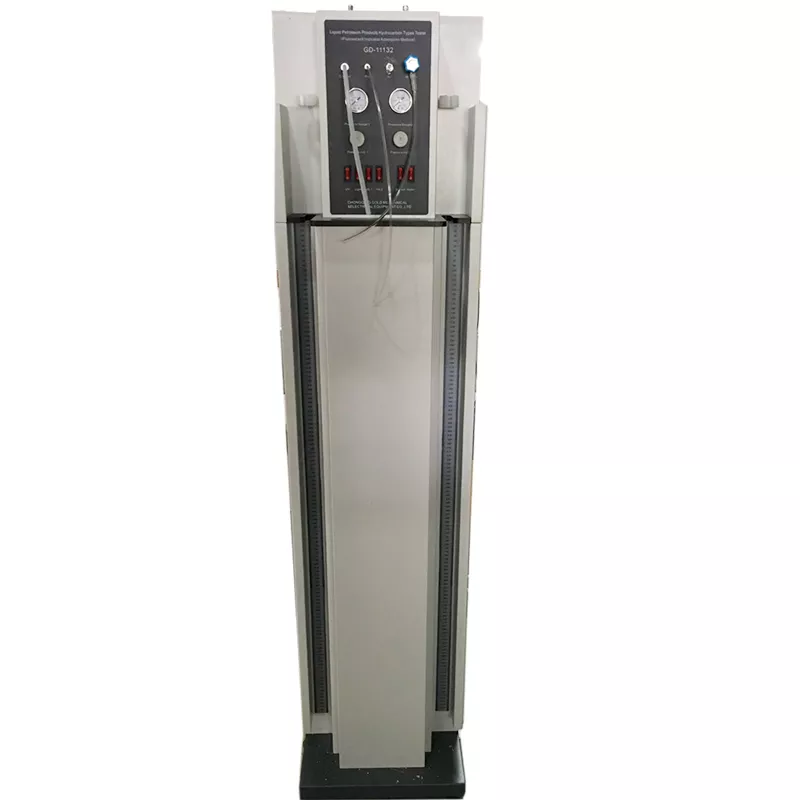

Fluorescent Indicator Aviation GD-11132
GOLD

Fluorescent Indicator Aviation GD-11132

Features :

1. Vertical type and unit-body design. No need to install.
2. This instrument is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
3. Two pieces of imported precise glass tube adsorption column. It is convenient to operation.
4. Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.

SKU: GLD-GD-11132-Fluorescent Indicator Aviation Category: Tags: , , , , , , , , , , , ,

Specifications :

Model GD-11132
Power supply AC220V±5%，50Hz
Pressure regulating range of reducing valve (0~400)kPa
Electric agitator Independently controlled for each way
Ultraviolet light source pipe 1220mm in length，wavelength is 365mm±5nm
 Illuminating lamp 1220mm in length，power is 40W
Air supply  Nitrogen cylinder (or air compressor，compressed air bottle)
Ambient temperature (5~35)℃
Relative humidity  ≤85%
Dimension 350mm*400mm*1770mm
Maximum power consumption 600W

Catalog : PDF
