GBPI Testing Instruments

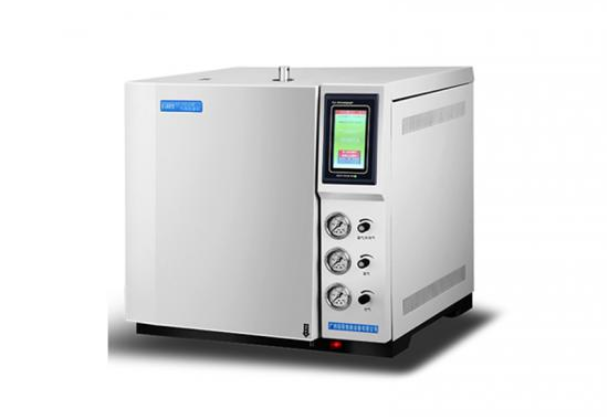

Gas Chromatography GC-9802

Features :

· Economical and practical, excellent performance and quality.
· Adjustable gas circuit pressure, stable flow, with multiple gas circuit system of nitrogen, hydrogen, air,
exhaust, shunt , cleaning.
· LCD screen displays temperature in real time.

· Cellular overall structure design, convenient to install and maintenance.

· Advanced noise resistant system, work quietly.

· Over-temperature protection function, with program protection and circuit protection double insurance.

· With data workstation, professional software support and powerful data analysis function.

· Display working condition and chromatogram curves; curves can be zoomed and moved.

· Professional test report, can export PDF file.

· Manual button switch, its function is equal to“start collecting”, which is convenient for sampling.

· Easy to operate detector and baseline calibration.

Specifications :

Items Technical Parameters
Detector hydrogen flame detector(FID)(optional for others)
Detector Parameters Sensitivity Mt≤1×10-11g/s( n−hexadecane);
baseline drift≤0.02mv/h; noise≤0.02mv
Chromatographic column OV-1701 capillary-column chromatography, 50m×0.32mm×0.5um,
maximum service temperature:400°C(optional for other chromatographic column)
Injection port Capillary column injection port(optional for packed column injection port)
Column oven size 240×210×240mm
Temperature range Highest 400°C
Temperature controlling accuracy 0.1%
Temperature resolution 0.1°C
Heating rate 0~40°C/minute
Carrier gas source N2,purity 99.99%,0.4MPa,dry
Hydrogen gas source Purity 99.99%,0.4MPa,dry
Air source 0.4MPa,dry,clean,oil-free
Air connection Φ3mm gas pipe
Instrument size 500×550×500 mm

Catalog : PDF
