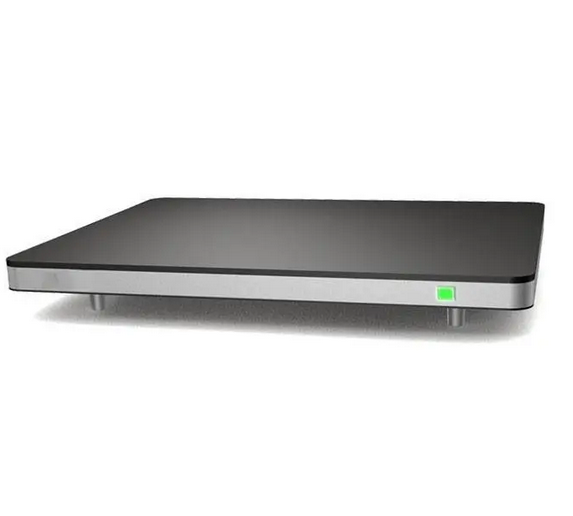

High Temperature Resistance and Stainless Heating Plate DRK-FX-306

Features :

Ceramic glass surface, high temperature resistance and stainless. (The surface with Teflon coating is not resistant to high temperature; although stainless steel surface is resistant to high temperature, it is easy to rust).
Good abrasion resistances, long life, smooth surface and accessibility for cleaning.
A big heating area, to facilitate the bulk sample processing.
The detached design for control mode, personnel operating the controller are far from acid mist, safe and convenient.
Platinum resistance control temperature accurately and heat up rapidly and equably, and the temperature is up to 400℃.
Large LCD screan, display intuitively.
Heat caution display (heating surface temperature exceed 50℃, alarming lamp redden), more safety.

Specifications :

Heating surface materials	ceramic glass.
Heating surface dimension	400 mm × 300 mm.
Temperature range	room temperature–400 ℃.
Temperature stability	± 1 ℃.
Temperature measurement accuracy	± 0.2 ℃.
Control mode	detached PID intelligent controlling program.
Time setting range	1min ~ 24 hr.
Power supply	220v/50 Hz.
Load power	2000 W.

Catalog : PDF
