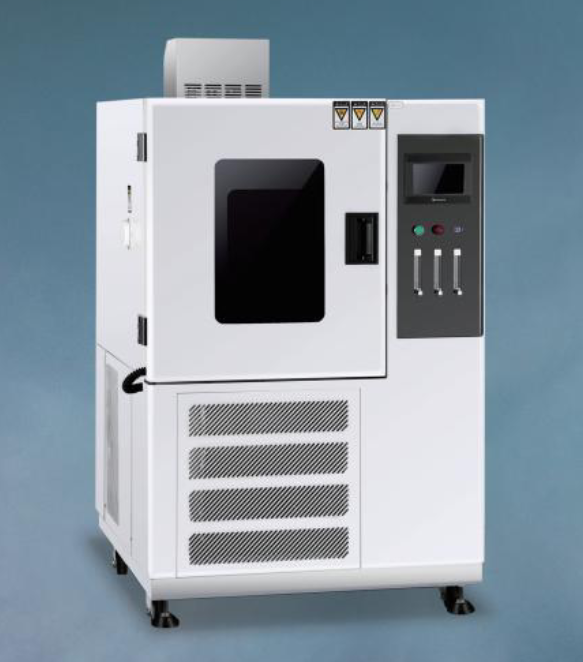

Modified Atmosphere Refrigerator GQ-160A
GBPI Testing Instruments

Modified Atmosphere Refrigerator GQ-160A

Features :

· Scroll compressor refrigeration system.
· PID algorithm with the solid state relays control the heating tube and no rigid mechanical contacts, long service life, average temperature of heating, the temperature is constant.
· Mass flow controller, the resolution of 0.01ml/min.
· High frequency atomization humidifier for humidification, large humidification range, long time humidification without getting fever.

SKU: GBPI-GQ-160A-Modified Atmosphere Refrigerator Category: Tags: , , , , , , , , , ,

Specifications :

Items Technical Parameters
Test range O2 :0%~50%; CO2 :0%~20%;C2H4 :0~200ppm N2 :0%~100%
Resolution ratio O2 : 0.01%; CO2 : 0.01%，C2H4 :0.1ppm
Gas flow control O : 0~100ml/min, CO : 0~100ml/min; N : 0~100ml/min
Temperature control range -5°C~50°C
Temperature deviation ±1°C
Temperature accuracy ±0.1%
Humidity range normal ~ 95％RH
Humidity deviation ±3%RH
Humidification power 15W
Lighting power 100W
Capacity 160L
Material color steel
Power supply AC 220V, 50Hz
Weight 270kg
Environment temperature 0 ～ 40°C
Refrigeration Power 2000W
Size inner: 48cm × 38cm x 73cm;
outer: 61cm × 62.5cm x 160cm
Gas purity ≥99.9%

Catalog : PDF
