GOLD

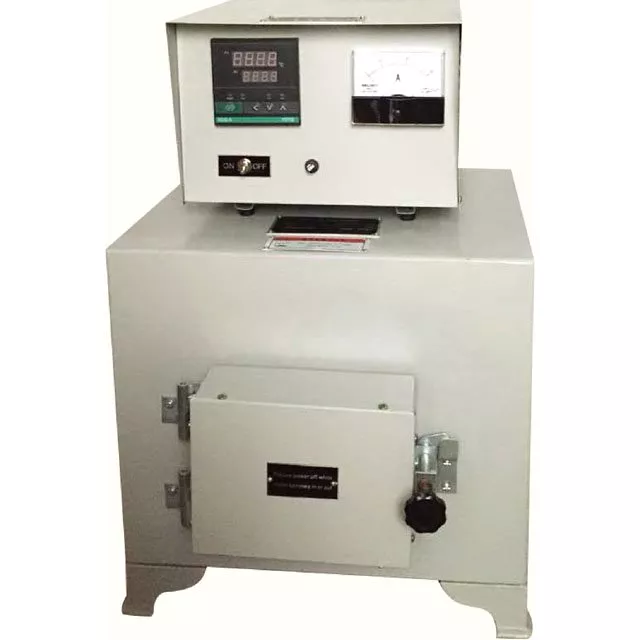

Ash Content Analyzer GD-508

Features :

1. The Ash Conten  is composed of a box-type heating furnace, a temperature control stand and an electric heating plate. It is small size and needs less land.
2. The box-type furnace adopts all-in-one structure. Special fire-resistant material and heating components. The heating time is short and it has a long lifetime.
3. An adjustable LED temperature controller is equipped in the control stand. The overshoot is small and temperature control is stable.
4. The size of heating plate is Φ85㎜. Small size and good durability.

SKU: GLD-GD-508-Ash Content Analyzer Category: Tags: , , , , , , , , , ,

Specifications :

  • GD-508

Box-type Heating Furnace

Power supply AC220V±10%, 50 Hz
Rated power 2.5 kW
Rated temperature 1000℃
Temperature rising time for empty furnace ≤50 min
Power consumption for empty furnace ≤800W
Heat savings ≤5kW.h
Furnace temperature uniformity ≤15℃
Therm℃ouple WRN-010
Size of furnace chamber 200mm*120mm*80mm
Dimension 575mm*3850mm*480mm

Temperature Control Stand

Rated controllable power 5000W
Power supply AC(220±10%)V, 50Hz
Maximum control temperature 1200℃
Temperature controller DTW2001
Therm℃ouple WRN-010
Dimension 500mm*300mm*235mm

Electric Heating Plate

Rated power 1500W
Power supply  AC (220±10%) V, 50Hz
Rated temperature  400℃
Heating power (1~6)grades, continuously adjustable
Diameter of heating plate Φ85mm
Dimension 280mm*250mm*90mm

Catalog : PDF
