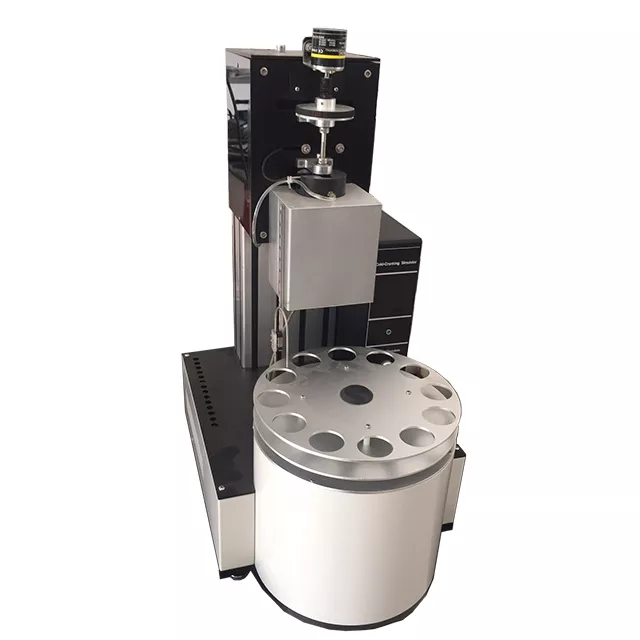

Automatic Cold Cranking Simulator GD-H1089

Features :

  1.  Automatic testing rotating speed, control current and reduce human error.
  2.  Semiconductor refrigeration, a large quantity of cold.
  3.  It adopts imported motor drive, high precision.
  4.  LCD screen shows all working conditions.
  5.  Printer can be connected to print the results.
  6.  After calibration with standard oil, results are automatically calculated.
  7.  Computer control, windows operating system, all English interface.
  8.  Improved rotor, low torque test state, high repeatability.
  9.  Automatically generate calibration curves, direct display of test viscosity results.
  10.  All test procedures are fully automatic control without manual operation, automatic stop and heat up after the test
  11.  The instrument automatically recommends the cooling temperature.
  12.  Rotary encoder detects speed.
  13.  Viscosity measurement range: 500~15,000CP.
  14.  It can edit 20 kinds of standard oil results.
  15.  Equipped with a dedicated low-temperature refrigeration equipment.

Specifications :

  • GD-H1089
  • GOLD
1 Applicable standards GB/T6538, ASTM D2602, D5293
2 Refrigeration method Semiconductor refrigeration
3 Circulation method Multi-function universal steel pump
4 Temperature control mode digital display PID temperature controller
5 Detection method Automatic injection, automatic cleaning, automatic testing
6 Result processing Automatic storage, printing
7 Temperature control range Normal temperature~-35℃
8 Working power supply AC220 V, 50Hz

Catalog : PDF
