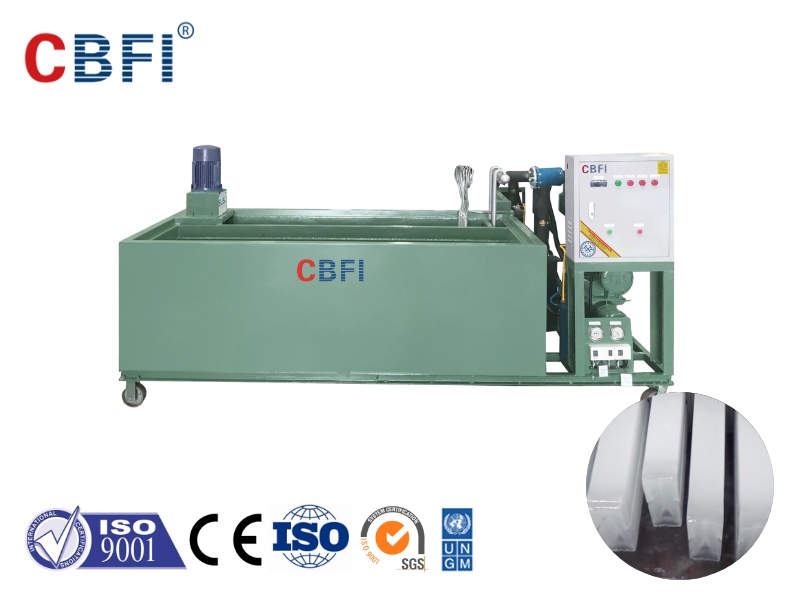

CBFI 1 Ton Per 24h Block Ice Machine

Features:

CBFI BBI10 1 ton per 24h block ice machine

CBFI Block Ice Machine:

1. Power saving and energy saving. Patented evaporator design improves ice making efficiency and reduces energy consumption.
2. The salt water pool is extremely resistant to corrosion. The surface of the salt water pool adopts anti-corrosion technology, two primers and one top coat, the paint surface is resistant to low temperature, long-term salt water immersion does not fall off, and the service life is more than 35% higher than similar products.
3. Customized ice molds of any size. The ice mold can be customized according to the needs of the local market.
4. Durable evaporator. Ultra-thick coil tube wall, up to 3mm thick, and the service life up to 20 years.
5. Large capacity reservoir. It can ensure that the ice machine is operated in a large temperature difference environment without liquid shock. It is the best product for compressor protection among similar products.

SKU: CBFI-BBI10-CBFI 1 Ton Per 24h Block Ice Machine Category: Machinery Tags: 1 Ton Salt Block Ice Making Machine, BBI10, CBFI, CBFI 1 Ton Per 24h Block Ice Machine, CBFI-BBI10-CBFI 1 Ton Per 24h Block Ice Machine, Guangzhou Port, High Speed Block Ice Machine, Small Ice Block Making Machine

Specifications:

Machine Details

Parameters

BBI10 Block Ice Machine Parameters
Name	Unit	Parameter
Bitzer Compressor Parameter	Model	4EES-4
	Cooling Capacity（kW）	8.43
	Power（kW）	3.66
Condenser	Model	WN-5
Condenser	Heat Exchange（kW）	19.4
Condensing Temperature	Degree Celsius（℃）	38
Evaporating Temperature	Degree Celsius（℃）	-18
Ambient Temperature	Degree Celsius（℃）	32
Water Temperature	Degree Celsius（℃）	20
Refrigerant		R22
Voltage	V/P/HZ	380/3/50
Agitator	Power（kW）	1.5
Cooling Tower	Model	LX-8
Cooling Tower	Power(kW)	0.25
Cooling Pump	Model	GD40-15
Cooling Pump	Power	1.1
SS304 Ice Mold Dimension	LWH(mm)	Customized
Machine Dimension	LWH(mm)	Customized
Remarks	Crane is not included.
