GBPI Testing Instruments
,

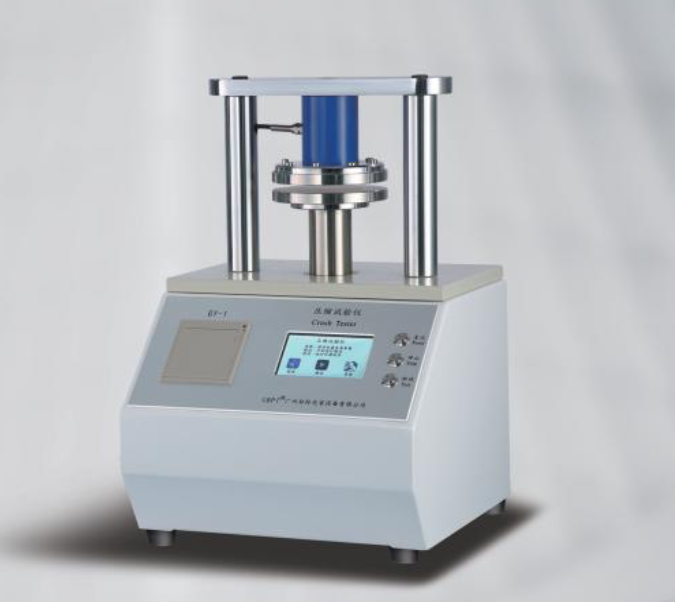

Crush Tester GY-1

Features :

Test corrugated core paper and kraft paper, the pressure strength of vertical direction.
Cooperate with accessories can
test the vertical pressure strength, bonding strength and flat strength of board.

SKU: GBPI-GY-1-Crush Tester Categories: , Tags: , , , , , ,

Specifications :

Items Technical Parameters
Measuring range 30 ~ 3000N
Resolution 1N
Function options lat pressure side pressure, bonding strength, ring crush strength.
The pressure plate size 100 x 100mm (or according to customer specified)
Experimental stroke 70mm
Test Speed Default 12.5 ± 2.5mm/min and can be switched manually governor 5 ~ 100mm/min
Weight 34kg
Power 1000W
Power supply 220V/50Hz
Dimensions 330x350x510mm

Catalog : PDF
