Sommer Messtechnik

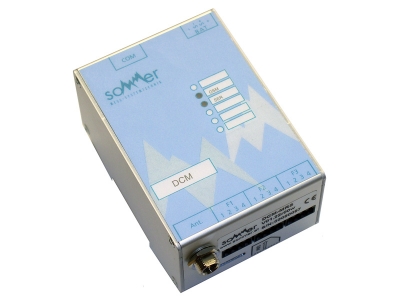

Data Communication Module DCM 862

Features :

  • GPRS/GSM data modem.
  • Data transmission to FTP server or SOMMER MDS-server.
  • Cost efficient data transmission with GPRS flat rate.
  • Establishing of online measuring networks.
  • Intelligent energy saving management – low power consumption.
  • Monitoring of the connection via watch dog function.
  • Automatic time synchronisation.
  • Remote parameter adjustment possible.
  • Connectable to any data logger with hardware driver extension.
  • Future save by CSV and xHydro transmission format.

Specifications :

Standard GSM / GPRS class10.
Range Quad-Band 850/900 MHz und 1800/1900 MHz.
Interface serial interface for data read-out (RS 232).
Data buffer 64 kB failsafe (approx. 1000 records in CSV format).
Transmission protocols http, ftp.
Transmission format CSV, xHydro.
Power supply 5 … 15 VDC.
Power consumption ready to receive 12 mA, sending mode 330 mA, Peak 2 A.
Dimensions 110 x 80 x 60 mm (W x H x D).

Catalog : PDF
