Sommer Messtechnik

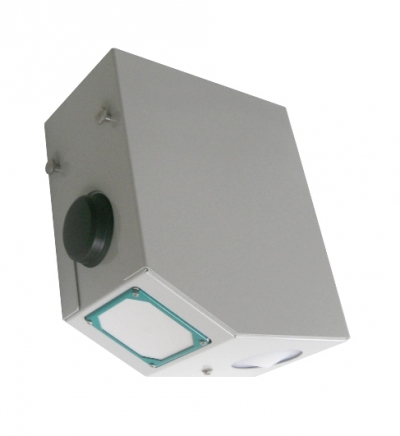

Discharge Radar RQ-30 ADMS

Features :

The RQ-30 ADMS is an all-in-one discharge measurement System.
It contains the non-contact flow velocity and water level sensors of the RQ- 30 and applies the same algorithms and model to calculate the discharge in the RQ-30 sensor.
The rechargeable batteries allow autonomous operation for several month and the integrated charge controller provides for an easy connection of a solar panel.
The integrated data logger of the RQ-30 ADMS offers wireless 2-way data communication.
The 2-way communication makes it possible to remotely access the sensor and data logger anytime from anywhere.
Notifications by E-mail and SMS are a standard feature of the RQ-30 ADMS. Optionally, the RQ-30 ADMS can be equipped with a SOMMER Time laps camera for visual surveillance of the monitoring site.

Specifications :

  • Protection class IP 66
  • Battery 24 Ah / 12 V
  • Recommended solar panel (for mid-latitude) 20 W
  • Power consumption active operation 150 mA, standby 3 mA (total system)
  • Operating temperature – 20° … 60° C
  • Total weight 19.5 kg
  • Mischellaneous over voltage protection, reverse power protection, lightning protection
Waterlevel measurement
  • Measuring range 0 … 15 m standard version / 0 … 35 m extended version
  • Resolution 1 mm
  • Accuracy +/- 2 mm
  • Radar frequency 26 GHz (K-Band)
  • Radar opening angle 10°
Velocity measurement
  • Measuring range 0.08 … 16 m/s (depening on flow conditions)
  • Accuracy +/- 0.01 m/s; +/- 1 % FS
  • Resolution 1 mm/s
  • Direction recognition +/-
  • Measurement duration 5 … 240 sec.
  • Measurment interval 8 sec. … 5h
  • Measuring frequency 24 GHz (K-Band)
  • Radar opening angle 12°
  • Distance to water surface 0.50 … 35 m
Data transmission
  • Supported networks quad band EGSM 850 / 900 / 1800 / 1900 MHz networks
  • Transmission power class 4 (2W) with 850 / 900 MHz; class 1 (1W) with 1800 / 1900 MHz
  • 2G/3G/4G  up to 14.4 kbps (transparent) and 9.6 kbps (non-transparent)
  • Data transfer FTP server or HTTP server
  • MDS server: package including database, station- /user management and data visualisation via web browser
Data logger
  • Storage up to 500,000 values
  • Data readout  remotely

Catalog : PDF
