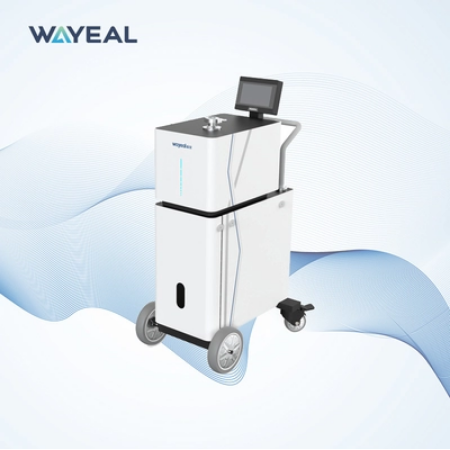

Double Ion Source Helium Leak Detector SFJ-16C

Features :

  1. Double Ion Source Helium Leak Detector is an advanced helium mass spectrometer leak detection system designed to provide fast, reliable, and accurate results.
  2. With its advanced helium mass spectrometer technology, the detector is excellent for locating even the smallest leaks of helium in a wide range of applications.
  3. It is the perfect choice for those seeking an efficient and reliable helium leak detection system.

Specifications :

Double Ion Source Helium Leak Detector SFJ-16C
Product Name Helium Leak Detector
Communication Interface RS232/485, LAN
I/O Input output interface 8 Inputs, 8 Outputs
Detection Method Helium Leak Detection
Operating Temperature 0~40°C
Mini Leak Detection Rate (Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s
Mini Leak Detection Rate (Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
User Interface 7 inch Color Touch Screen
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Diamension 755*467*1180mm
Leak Rate Display Numbers, Bar Charts, Graphs
Keywords Mass Spectrometer Leak Detector, vaccum leak detection devices, vacuum detection equipment
Respones Time(s) < 1s
Startup Time (min) ≤1.58min
Backing Pumps Rotary Vane Vaccum Pump
MES Interface Standard
Diamensions 755*467*1180mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese and English

Catalog : PDF
