GBPI Testing Instruments

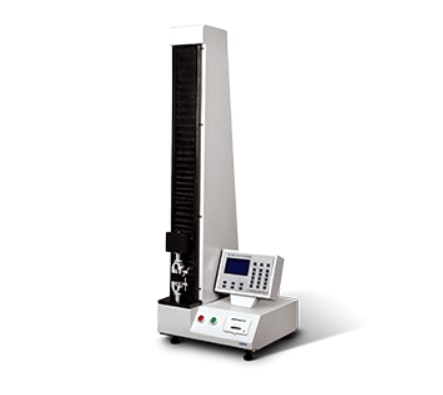

Electronic Tensile Tester GBL-L

Features :

· Multi-parameter variables setting in width, speed, thickness and clip distance.
· LCD display; Thermal printer print the test results.

· 3 level security protection, the trial running is more secure.

· High-speed sampling (50times/s), accurate experiments data.

· Core part adopt import components, more accurate and durable.

Specifications :

within ±1% of the displayed value (grade 1)

Items Technical Parameters
Force range 0-300N (0~500N optional ), 1400% elongation
Force accuracy
Test speed 0-500mm/min (infinitely variable speeds)
Displacement accuracy within ±1% of the displayed value
Test width range 30mm (50mm can be customized)
Travel distance range 700mm
Instrument size 600mm × 500mm ×1300mm
Weight 65kg

Catalog : PDF
