Specifications:
Model | S-01 | S-02 | |

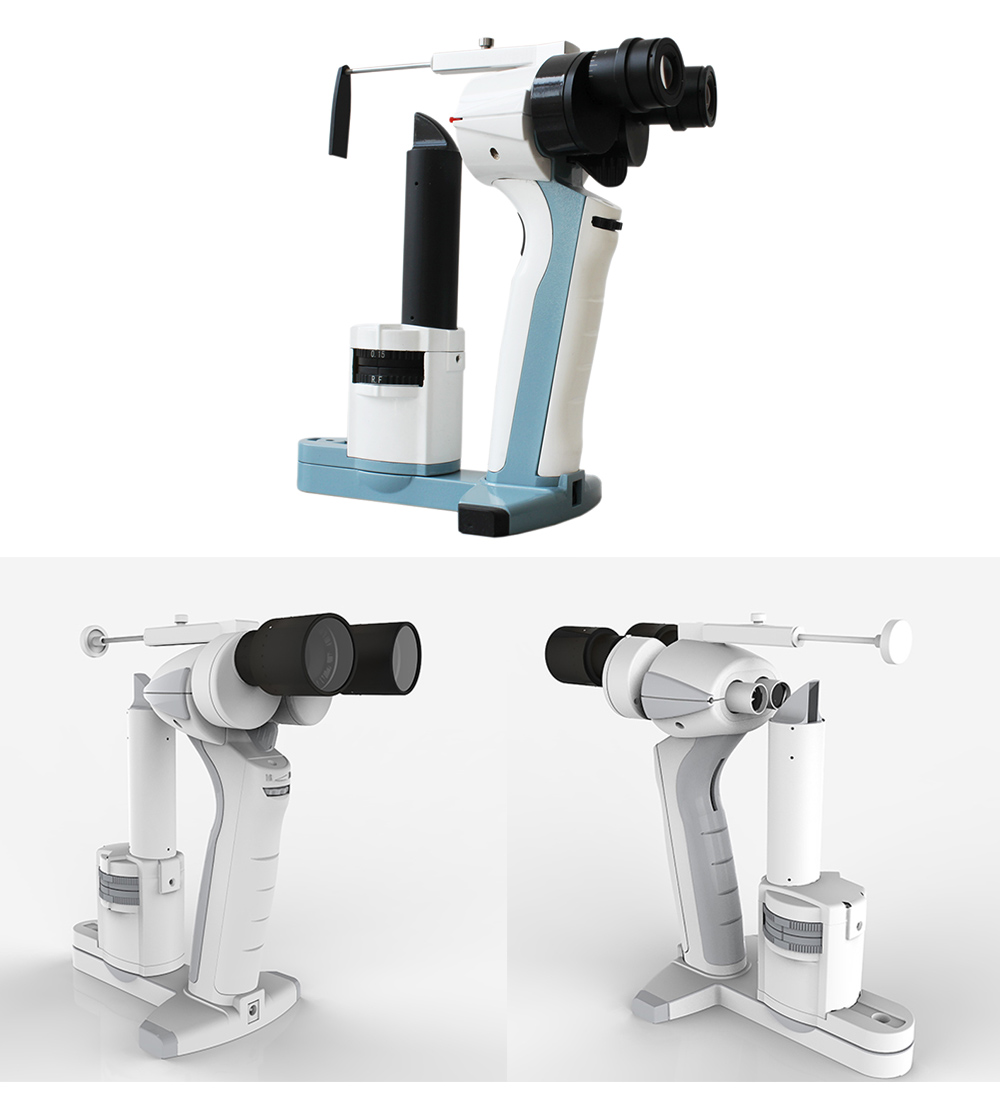

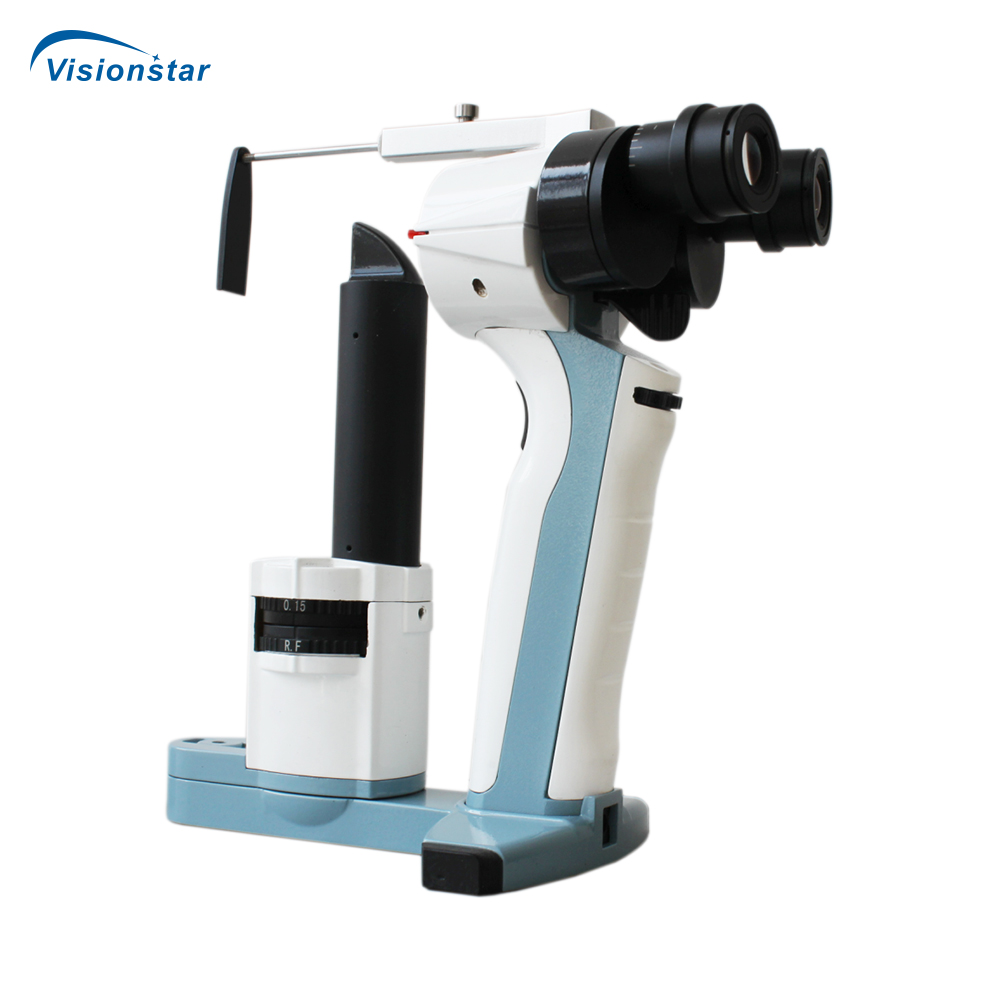

Microscope | Type | Binocular Handheld Slit Lamp | |
Eyepiece | Convergence binoculars, 13⁰ degree | ||
Magnification | 10X | 10X, 16X | |
Working Distance | 80mm | ||
Pupil Distance | 45mm~ 78mm | ||
Diopter Compensation | -8D~ 8D | ||
Illumination | Slit Width | 0.15mm, 0.5mm, 0.8mm, 1.6mm,ф 12mrm, 1X1mm Block | |
Slit Length | 12mm | ||
Slit Angle | Horizontal 160 | ||
Filter | Heat-Absorption, Color Temperature Compensation, Red Free,Cobalt blue | ||
Light Source | White LED | ||
Maximum Illumination | > 50000Lux | ||
Power Source | LED Working Voltage | DC7 4V, 950mAh | |
Battery | Li-ion battery 7.4V/950mAh, continuous working time > 3 hoursafter fully charged |
Catalogue: PDF
See more products Vision Star Optical Co. ltd. brand.
