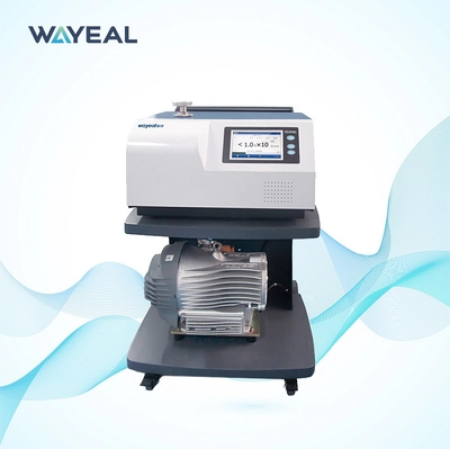

Helium Leak Detector SFJ-231E

Features :

  1. Helium Leak Detector is a professional gas leak detection device, specifically designed to detect helium leakage and quantify the leakage rate.
  2. It is designed to detect helium with quality 2, 3 and 4 (H2, He3, He4) with maximum allowable leak detection pressure of 1500 Pa.
  3. Helium Leak Detector is an ideal tool for those who need to detect and pinpoint helium leakage and provide reliable and accurate leak rate.
  4. It is an ideal choice for industrial applications, such as sniffer leak detection, leak testing, research and development, component testing, and gas systems maintenance.

Specifications :

Parameter Value
Detection Method Helium Leak Detection
Ion Source 2pcs,Iridium Coated Yttrium Oxide, Automatic Switching
Response Time(s) <1
Operating temperature 0~40°C
MES Interface Standard
Max Allowable Leak Detection Pressure (Pa) 1500Pa
Product Name Helium Leak Detector
Leak detection port DN25KF
Detectable Quality 2, 3, 4 (H2, He3, He4)
Diamension 645*678*965mm
Minimum Detectable Leak Rate(Pa.m3/s) Vacuum Mode 5.0×10-13 Pa.m3/s
Minimum Detectable Leak Rate(Pa.m3/s) Sniffer Mode 5.0×10-9 Pa.m3/s
Startup Time (s) ≤2 min
I/O Input/Output 8 Inputs and 8 outputs
Communication Interface RS232/485, USB*2
Power Supply AC220V, 50Hz/60Hz
Language Chinese and English

Catalog : PDF
