Features :

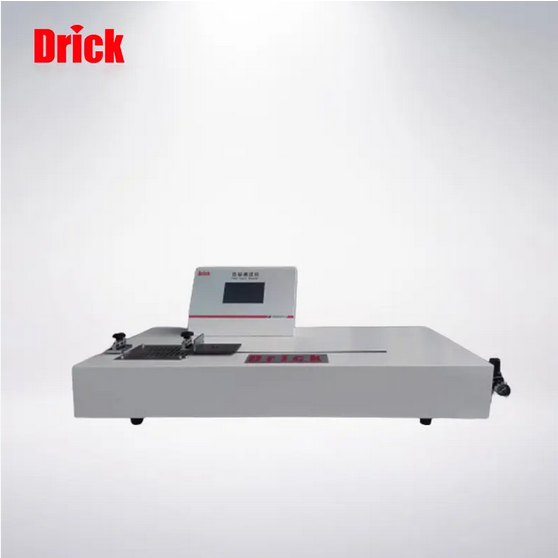

The touch color screen thermo adhesive instrument measurement and control instrument (hereinafter referred to as the measurement and control instrument) adopts the latest ARM embedded system, 800X480 large.
LCD touch control color display, amplifiers, A/D converters and other devices adopt the latest technology, with high precision and high precision.
The characteristics of resolution, simulating the microcomputer control interface, simple and convenient operation, greatly improving the test efficiency.
The performance is stable, the function is complete, the design adopts multiple protection systems (software protection and hardware protection), which is more reliable and safer.
Specifications :
| Parameter Item | Technical Indicators |
| Force Measurement Resolution | 0.001N |
| Force Measurement Accuracy | 0.2% or more |
| Sampling Frequency | 200Hz |
| LCD Display Life | About 100,000 hours |
| Number of Effective Touches of Touch Screen | About 50,000 times |
| Loading Speed | 0.1-1400cm/min |
| Heat Sealing Time | 10-99999ms |
| Heat Sealing Temperature | Room temperature -200℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Heat Sealing Pressure Range | 100－500kPa |
| Heat Sealing Pressure Resolution | 0.1kPa |
Catalog : PDF
