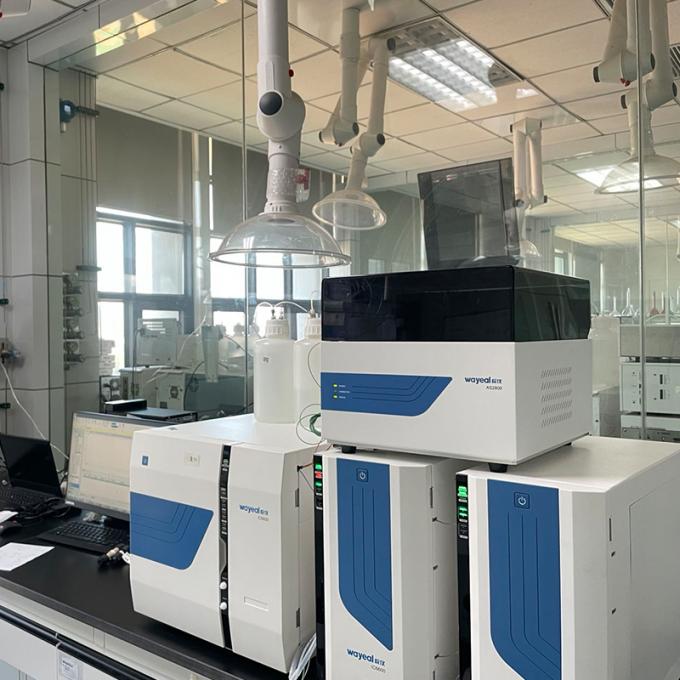

Ion Chromatography Instrument IC6610

Features :

  1. Ideal model for high efficiency, high sensitivity, high reliability ion chromatography; dual system one machine realizes yin and cation simultaneously.
  2. Conductance and electrochemical detectors meet the detection requirements of different substances.
  3. Can realize two-dimensional ion chromatography (valve switching) and post-column chemical derivatives.
  4. Dual system simultaneously detection design allows customers to maximize efficiency, further shorten detection time.
  5. Double pump, column temperature box, modular design of the crash generator, the user can choose the required system configuration.
  6. It can be equipped with high-end double pump double system detection, and can also customize single pump single system detection according to customer needs, and personalize your chromatography solution.

Specifications :

Ion Chromatography Instrument IC6610
System Parameter
Qualitative repeatability ≤0.1%
Quantitative repeatability ≤0.5%
Pump System
Flow Rate 0.001~12.000 mL/min
Pressure Resistance 0~40 MPa
Flow Rate Setting Error <0.1%
Flow Rate Stability <0.1%
Pressure Display Accuracy 0.001Mpa
Pressure Pulsation <0.25%
Ampere Detector
Drive voltage range -2.0V –2.0V
Drive voltage resolution 0.001V
Noise Integral mode <30pC;DC mode <5pA; DC mode static noise <1pA.
Cell material Titanium
Working electrodes Gold, glassy carbon, silver, platinum
Cell volume <0.2uL
Maximum cell pressure 0.7MPa
Minimum detection concentration I – 0.001 μg/mL
Minimum detectable concentration fructose – 0.01μg/mL
Minimum detectable concentration CN – 0.0005 μg/mL
Suppressor
Constant current source range 0-500mA
Dead volume 50uL
Pressure resistance 3MPa
Suppression capacity 170ueq/min
Column Oven
Temperature range Room temperature +5℃~70℃
Temperature control stability 0.1℃/h
Temperature setting error 0.05℃
Autosampler
number of sample vials ≥ 120, 1.5ml sample bottle
Repeatability Full-loop injection <0.3% RSD (injection volume >5uL)
Syringe specifications standard: 500ul; optional; 250ul, 1000ul, 2500ul
Linearity >0.999
Cross-contamination <0.01%
Eluent Generator
Flow rate range 0.001~3.000ml/min
Eluent concentration range KOH, MSA-0.1~100.0mM
Concentration accuracy 0.1mM
Electrolyte original concentration 25% KOH/MSA
Maximum working pressure 21MPa (3000psi)
Gradient accuracy 1.5%
