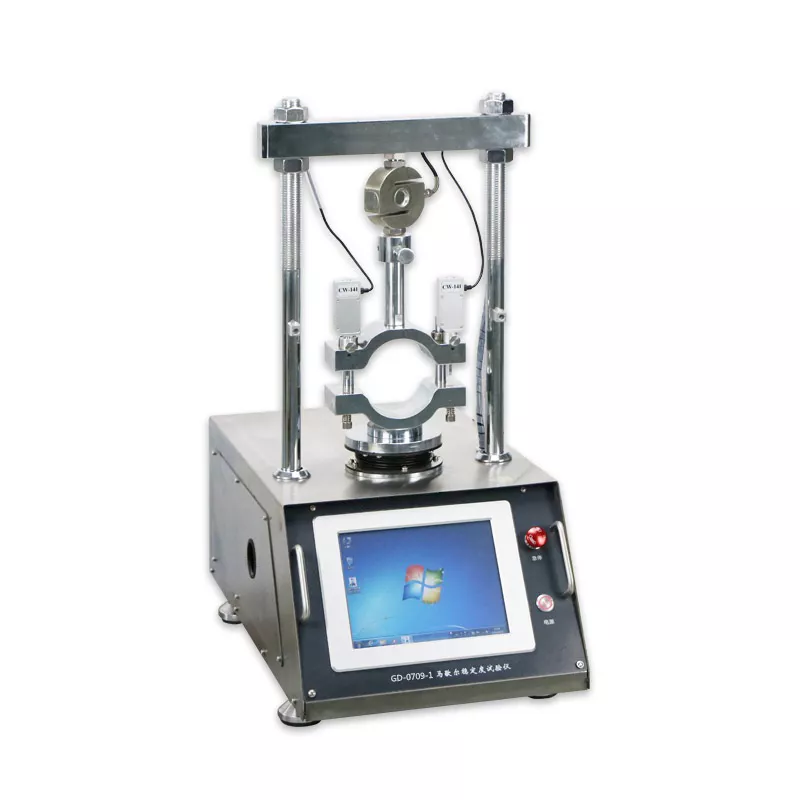

Marshall Stability Test Apparatus GD-0709-1

Features :

Adopting IPC touch screen, the advanced technologies.
The data of the initial deformation section is processed automatically, and the test results are displayed on the industrial touch screen.
It has three-way high-speed A / D conversion, high sampling accuracy and reliable sampling data.
It has two kinds of loading forms: automatic and manual. In general, the automatic loading form is adopted. In calibration or special cases, the manual loading form can be adopted.
With real-time test, automatic shutdown reset function.
Using double electronic displacement meter, four digit digital display, the average value of displacement data is more accurate and reliable.

Specifications :

Model: GD-0709-1.
Test load：（0～50.00）kN, measure error：±0.05%（F.S）
Vertical deformation（flow value）：（0～10）mm.
Measure error：±0.5%（F.S）
Lifting rate for pressure machine： (50±5)mm/min.
Mode：Manual and Automatic two modes.
Suitable environment：Ambient temperature：15℃～35℃.
RH：≤85％.
Communication port： RS232.
Power supply： AC（220±10%）V，50Hz.
Total consumption power：no more than 700W.
Dimension： 680×390×870mm.
Net weight: 75kg.
