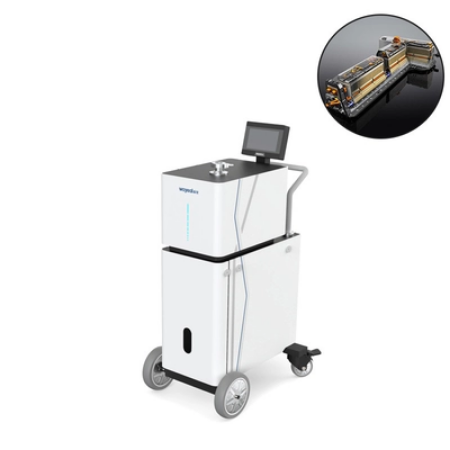

Modular Helium Leak Detector SFJ-16C

Features :

  1. Rapid and accurate detection of helium and hydrogen by helium injection mode, sniffer mode and others.
  2. Automatic evacuation pressure and time setting, high leak detection efficiency
  3. Suitable for industrial leak detection in various high requirements and hash environment.
  4. Wireless remote-control function (optional).

Specifications :

Modular Helium Leak Detector SFJ-16C

Performance Indicators

Model SFJ-16C
Minimum detectable leakage rate (Pa. m3/s)/ Vacuum Mode 5.0*10-13
Minimum Detectable Leakage Rate (Pa.m3/s)/Sniffer Mode 2.5*10-9
Maximum Detectable Leakage Rate (Pa) 1800
Response Time (s) <1
Start-up Time (min) ≤ 95s
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Man-machine Interface 7″ color LCD Touch Screen
Ion Source 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching

Basic Configuration

Pre-stage Pumps Optional
I/O Input/ Output Interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, LAN
MES Interface Standard
(Physical Size )W*D*H, mm 755*467*1180
Specifications of Leak Detection Hole DN25KF
Power Supply AC220V, 50HZ/60HZ
Operating Temperature 0~40°C
Display Language Chinese/English
Leakage Rate Display Figure, Bar Chat, Curve Chat

Catalog : PDF
