Specifications:
|
Specifications
|

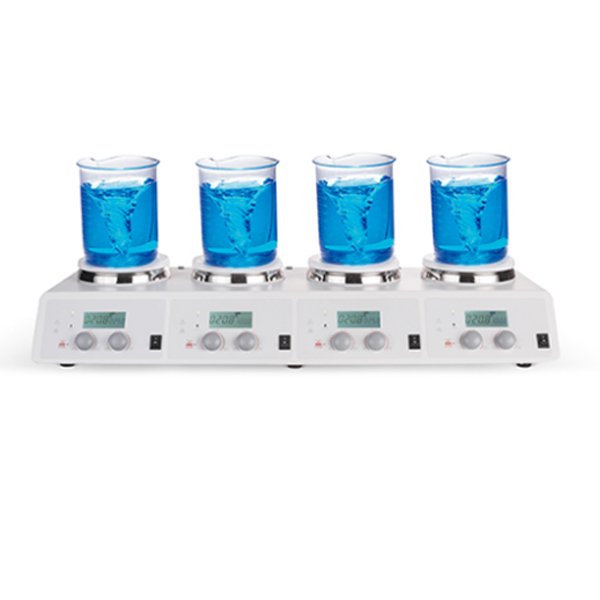

MS-H340-S4
|
|
Work plate dimension
|
Φ135mm（5inch）
|
|
Plate material
|
Stainless steel with ceramic coating
|
|
Motor type
|
Brushless DC motor
|
|
Motor rating input
|
1.8W×4
|
|
Power
|
515W×4
|
|
Heating Power
|
500W×4
|
|
Voltage
|
100-120V,60Hz; 200-240V,50 Hz
|
|
Stirring positions
|
4
|
|
Max. stirring quantity
of single position (H2O) |
10L
|
|
Max. magnetic bar
|
40mm
|
|
Speed range
|
200-1500rpm
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Control accuracy of sensor[rpm]
|
±20
|
|
Temperature range
|
25-340℃
|
|
Over-temperature protection
|
420°C
|
|
Temperature display accuracy
|
±0.1°C
|
|
External temp. sensor
|
PT1000（Accuracy±0.2℃）
|
|
IP Protection class
|
IP21
|
|
Dimensions[WxDxH]
|
698×270×128mm
|
|
Weight
|
9.5kg
|
|
Permissible ambient temperature
|
5～40°C
|
|
Permissible relative humidity
|
80%RH
|
