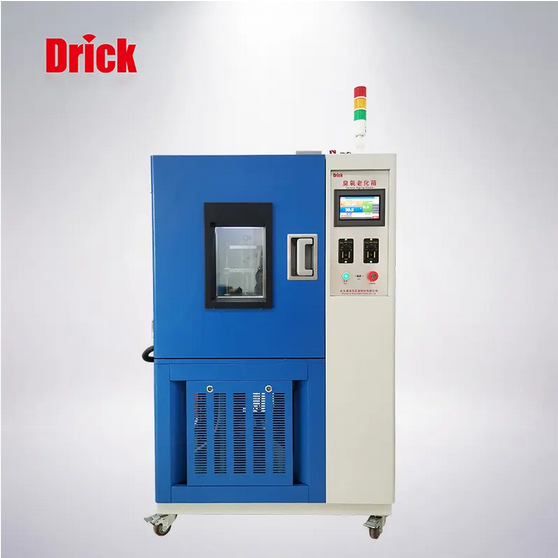

Ozone Aging Box DRK648

Features :

Ozone System:
The ozone generator is a silent discharge tube ozone generator (with the characteristics of small noise and high purity).
Ozone gas source: air.
Ozone detection probe and shell, electronic circuit board, shielded wire, etc.
Ozone detection probe output signal: 4～20mA.
Collection accuracy of ozone detection probe: ≤±5%F.S.
Ozone generator: use voltage silent discharge tube to generate ozone.
Ozone concentration controller: LED digital display (Shanghai PolyU).

Safety Equipment:
Leakage protector.
Over-temperature protector in the box.
Fan overheat protector.

Electrical Components:
Time Relay.
Delixi DH48A digital time relay (produced in Shanghai).
Intermediate relay.
Schneider (origin in Shanghai).
Leakage protector.
Schneider (origin in Shanghai).
AC contactor.
Schneider (origin in Shanghai).
Solid state relay.
Taiwan Yangming.
Fast fuse.
Shanghai.
Contactor.
Schneider (origin in Shanghai).

Standard Configuration:
Hollow electric heating tempered glass observation window 1.
1 copy of operation manual.
1 copy of certificate.
1 warranty card.
Power cord 4m.

Installation and Use Conditions:
Power Supply:
○AC380V.
○Voltage allowable fluctuation range: AC380V ±10%.
○Frequency allowable fluctuation range: 50Hz ±0.5 Hz.
○The grounding resistance of the protective earth wire is less than 4Ω; TN-S mode power supply or TT mode power supply.
Use Environment:
Temperature: 5℃～35℃, relative humidity: ≤85%RH.
Site:
○The ground is flat, well ventilated, free of flammable, explosive, corrosive gas and dust.
○There is no strong electromagnetic radiation source nearby.
○Proper maintenance space is left around the equipment.
Ozone aging test chamber meets the standard.

This product is designed and manufactured in strict accordance with the technical parameters of GB/T7762-2003. At the same time meet (ASTM-D1149, ASTM-D1171, ASTM-D3041) and other standards.
Special requirements customizable.

SKU: DL-DRK648-Ozone Aging Box Category: Tags: , , , , , ,

Specifications :

This test equipment prohibits:
Test and storage of samples of flammable, explosive, and volatile substances
Test and storage of corrosive material samples
Testing or storage of biological samples
Test and storage of strong electromagnetic emission source samples
Device Model：DRK648
Studio Size：500mm(W)*500mm(L)*600mm(H)
Outside Packing Size: 950mm(W)*1000(L)*1710mm(H)
Total Power: 5.5KW
Temperature Range: RT+10℃～+70℃
Temperature Deviation: ≤±2.0℃
Temperature Fluctuation: ≤±0.5℃
Ozone Concentration: 500pphm
Ozone Concentration Deviation: 10%pphm
Humidity Range: 30%-98%
Humidity Deviation: 2.0°C and 3.0°C
Voltage: AC380V/50HZ
Ozone Sample Rack: Static (dynamic) state tensile test sample frame
Rotation Speed: 0.1～2 revolutions/min
Rotating Bracket: 360 degree rotating sample holder speed adjustable
Temperature Rise and Fall Rate: The average heating rate is 3℃～5℃/min (when no load)
Display: LED digital display
Setting Method: Push button control
Precision: 0.01°C (display range)
Temperature and Humidity Measurement Data Collection: PT100 platinum resistance
Inner Box Material: 1.5mmSUS304 high-grade anti-corrosion stainless steel
Outer Box Material: 1.5mm cold plate is produced by the CNC machine and electrostatic spraying
Insulation Material: the insulation layer is made of ultra-fine glass wool with a thickness of 100mm with excellent insulation performance.
Laboratory Door: Single door, equipped with internal and external handles. Both sides of the door and the box body are equipped with imported sealing silicone rubber, which is reliable in sealing and good in aging resistance. The connection method is: Hinge lock, hinge and other hardware accessories are Japanese “TAKEN”.
Observation window: Hollow glass observation window with conductive film and high and low temperature resistant lighting device,
Sealing Material: Imported silicone rubber, reliable sealing, good aging resistance
Casters: We have designed four sets of casters at the bottom of the equipment, which can be moved and fixed

Nickel-chromium alloy electric heating wire heater

Heater control method: PID control method, using non-contact and other periodic pulse width modulation SSR (solid state relay)

Catalog : PDF
