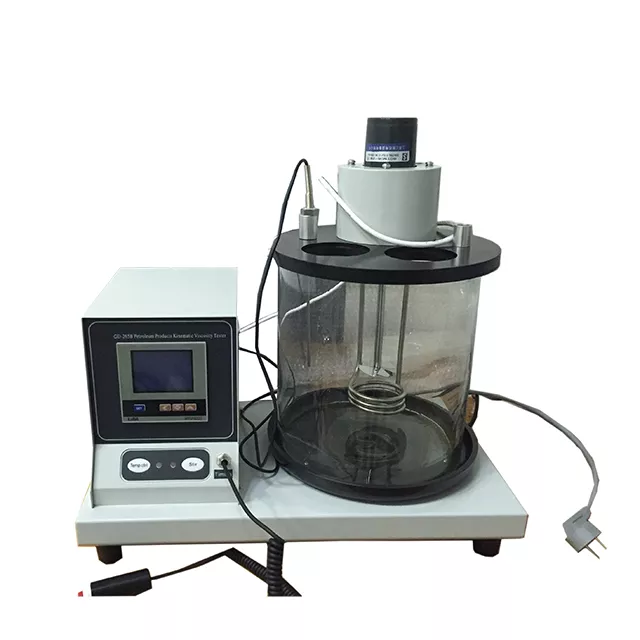

Petroleum Kinematic Viscometer GD-265B

Features :

1.  This Kinematic Viscometer adopts a type of all-in-one machine. The control switch adopts light-touch mode. It has the Features of novel design, compact structure and beautiful appearance.
2.  This Kinematic Viscometer adopts LCD temperature controller. The temperature control is rapid. The response is fast. The overshoot is small. The temperature control accuracy can reach ±0.1℃.
3.  This Kinematic Viscometer adopts hard glass bath and electric stirring device. Easy to observe the sample. The temperature in water bath is uniform.

Specifications :

  • GD-265B
  • GOLD
  • GD-265B
Power supply AC(220±10%)V,50Hz
Heating device Electric heating, power 600W
Stirring motor 6W, 1200RPM
Temperature control range Ambient to 100℃
Temperature control accuracy ±0.1℃
Temperature sensor RTD, Pt100
Ambient temperature Room temperature~35℃
Relative humidity ≤85%
Capillary viscometer tubes (Pinkevitch viscometer) 7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
Dimension 500*310*500mm

Catalog : PDF
