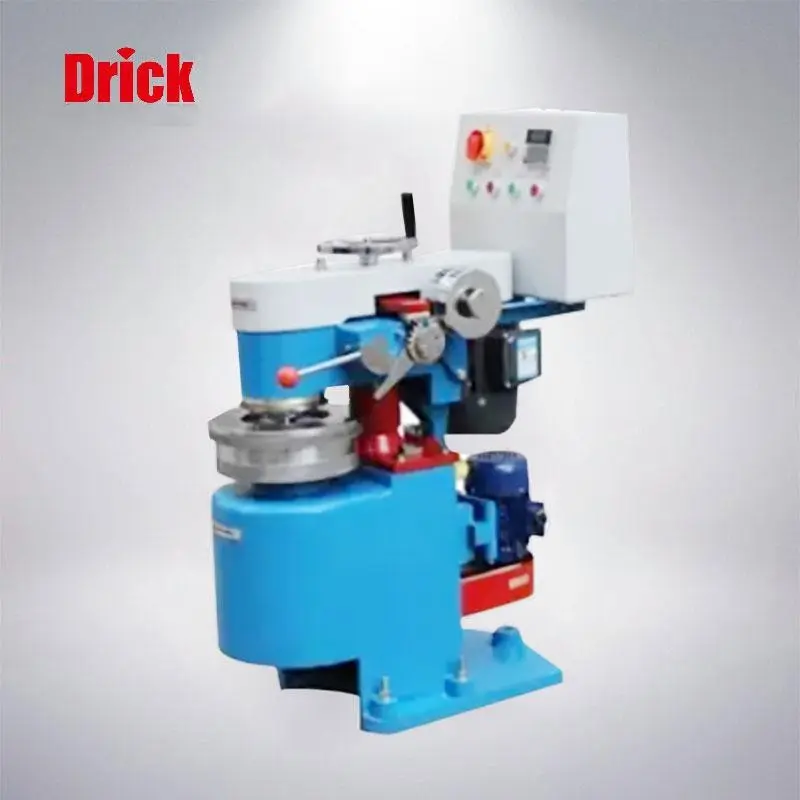

Refiner DRKPFI11

Features :

DRK-PFI11 refiner (also known as demolition machine or vertical beater) is used in pulping and papermaking experiments for the determination of the deduction degree of pulp, the determination of pulp sample moisture, the determination of pulp concentration, and the The measurement of dissociation and freeness provides a standard quantitative sample. DRK-PFI refiner complies with ISO5264/2-1979 “Pulp Laboratory Refining-Part 2: PFI Grinding Method” and the experimental standards specified in ISO5264/2 and TAPPIT248.

SKU: DL-DRKPFI11-Refiner Category: Tags: , ,

Specifications :

Pulp tank: inner diameter: medium 250mm 53mm
Flying knife rotor: outer diameter: Φ200mm, height 50mm, knife thickness 5mm
Flying knife rotor motor: 1.1kW /380v
Adjusting distance of deduction gap: 0~25mm.
Slurry pool motor: 370W/380v
Counter display control range: 0-999999 revolutions
Deduction pulp concentration: 5~50%
The absolute dry pulp is 5~30g, the standard is 10g.
Beating pressure: (3.33±0.1) N/mm blade length; (1.77±0.1) N/mm blade length; (4.89 ±0.1)/mm blade length.
Overall dimensions: length×width×height 860mm×450mm×1100mm
Packing box size: 1000*500*1460mm
Net weight: 251Kg; gross weight: 310Kg.

Catalog : PDF
