Specifications:
Applications

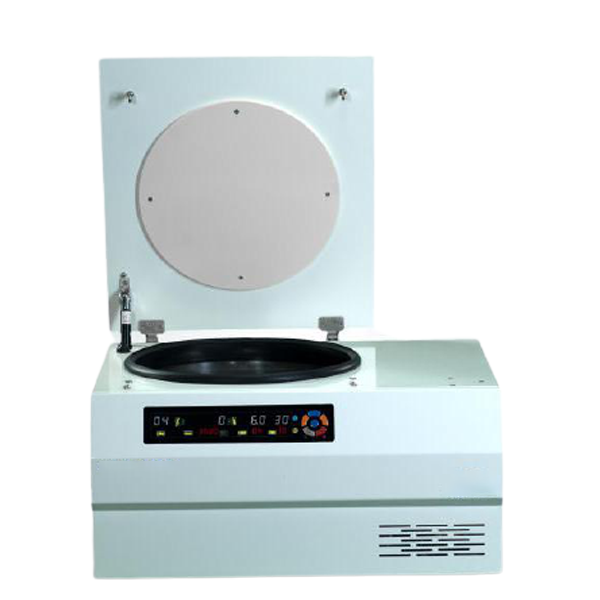

TP3-5KR bench top low-speed refrigerated centrifuge can be equipped with variety of rotors and adapters, suitable for separation and purification of radio immunity, clinical medicine, biochemistry, biopharmaceuticals, and blood products. It is an indispensable instrument for centrifugation at hospitals, research institutes and universities.
Technical Parameter
|
Model
|
TP3-5KR
|
|
Max RPM
|
5500rpm
|
|
Max RCF
|
4900×g
|
|
Max Capacity
|
4×250ml
|
|
Timer
|
1min～99min
|
|
Revolutions/min
|
±10r/min
|
|
Temp Range
|
-20℃～40℃
|
|
Temp Accuracy
|
±1.0℃
|
|
Voltage
|
AC 220±22V 50Hz 10A
|
|
Power
|
800W
|
|
Noise Level
|
≤ 60dB（A）
|
|
Chamber Diameter
|
Φ380mm
|
|
Dimensions (L x W x H)
|
550×650×365 (mm)
|
|
Packaging Dimensions
|
680×760×465(mm)
|
|
Net Weight
|
70kg
|
|
Rotor
|
No
|
Capacity
|
RPM/RCF
|
RCF(×g)
|
|
Angle Rotor（W）
|
1
|
4/6×50ml
|
5500rpm/ 4900×g
|
5310×g
|
|
Swing-out Rotor |
2
|
4×50/100ml
|
5000rpm/4390×g
|
4390×g
|
|
3
|
8×50/100ml
|
4000rpm/2810×g
|
2810×g
|
|
|
4
|
16×10/15ml
|
4000rpm/2810×g
|
||
|
5
|
24×10/15ml
|
4000rpm/2810×g
|
||
|
6
|
32×10/15ml
|
4000rpm/2810×g
|
||
|
7
|
48×5/7ml
|
4000rpm/2810×g
|
||
|
8
|
64x5ml
|
4000rpm/2810×g
|
||
|
9
|
4×250ml
|
4000rpm/3500×g
|
||
|
Micro plates rotor |
10
|
2×2×96 Hole
|
4000rpm/2300×g
|
2810×g
|
|
11
|
2×2×48 Hole
|
4000rpm/1700×g
|
3580×g
|
