Features :

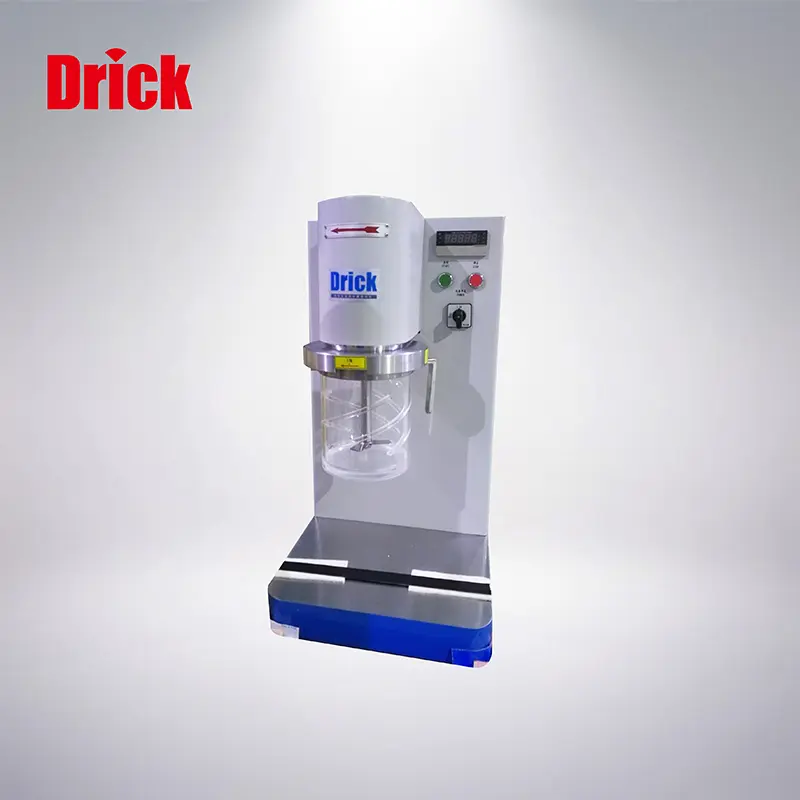

DRK28L-2 standard disintegrator (also known as vertical standard fiber disintegrator, standard fiber disintegrator, standard fiber stirrer), is a standard dissociation that dissociates bundle fibers into single fibers by rotating the fiber raw material of pulp in water at high speed. machine.
It is used for the preparation of manual papermaking, the measurement of water filterability and the preparation of samples for screening.
Specifications :
1. Sample: Absolutely dry 24g, concentration 1.2%, solution 2,000ml.
2. Power supply: 400w/380v.
3. Container volume: 3.46 liters.
4. Slurry volume: 2000mL.
5. Propeller: diameter φ90mm, blades conform to standard R gauge.
6. Standard speed: 3000r/min±5r/min.
7. Standard number of revolutions: 50000r (can be set by yourself).
8. Dimensions: W500×D400×H740mm.
9. Weight: 80Kg.
Catalog : PDF
