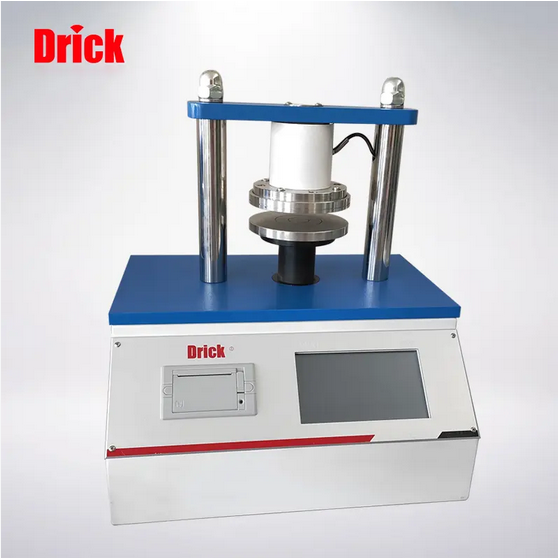

Touch Screen Compression Tester DRK113D

Features :

1. Modern design concept of electromechanical integration, touch screen operation, compact structure, beautiful appearance and easy maintenance.
2. The instrument adopts a fixed upper pressure plate and a high-precision weighing sensor to ensure the rapidity and accuracy of the instrument force data collection; the measurement accuracy is high.
3. Using high-speed ARM processor, high degree of automation, fast data collection, fully automatic measurement, intelligent judgment function, safe and reliable, with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset and operate Convenient, easy to adjust, stable performance.
4. It can display pressure and deformation test curve, real-time display anti-pressure, deformation and other information.
5. Adopt modular integrated thermal printer, fast printing speed, easy to change paper.
6. Can be connected to computer software, with real-time display of compression curve function and data analysis management, storage, printing and other functions.

Specifications :

Power supply: AC220V±10% 2A 50Hz
Indication error: ±1%
Indication variability: <1%
Resolution: 0.1N
Measuring range: (5~5000)N
Parallelism of pressure plate: ≤ 0.05 mm
Working stroke: (1 ~ 70) mm
Test speed: (12.5 ± 2.5) mm/min
Diameter of round pressure plate: 135mm
Man-machine interface: Chinese menu; LCD display
Print output: modular integrated thermal printer
Working environment: indoor temperature (20 ± 10) °C; relative humidity <85%
Dimensions: (390x240x540) mm (length × width × height)
Weight: about 40kg

Catalog : PDF
