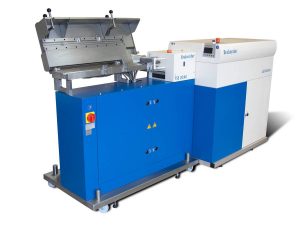

Twin Screw Extruder TSE 20/40 with the Lab-Station drive

SKU: BRA- TSE 20/40 with the Lab-Station drive-Twin Screw Extruder Categories: , Tags: , , , Brand:

Specification:

Twin-Screw Extruder TSE 20/40
Screw length (L : D) 40
Drive power 16 kW / 6,8 kW
Speed +0,2 – 350 min-1 / +0,2 – 200 min-1
Max. torque 2 x 40 Nm
Max. working temp. 400 °C
Max. output 0,5 – 10 kg/h
Segmented barrel/screw No/Yes
Screw rotation/special features Co-rotating, horizontally split barrel
Dimensions (L x W x H) 1350 x 730 x 1160 mm
Weight approx. 323 kg

Catalogue: PDF
