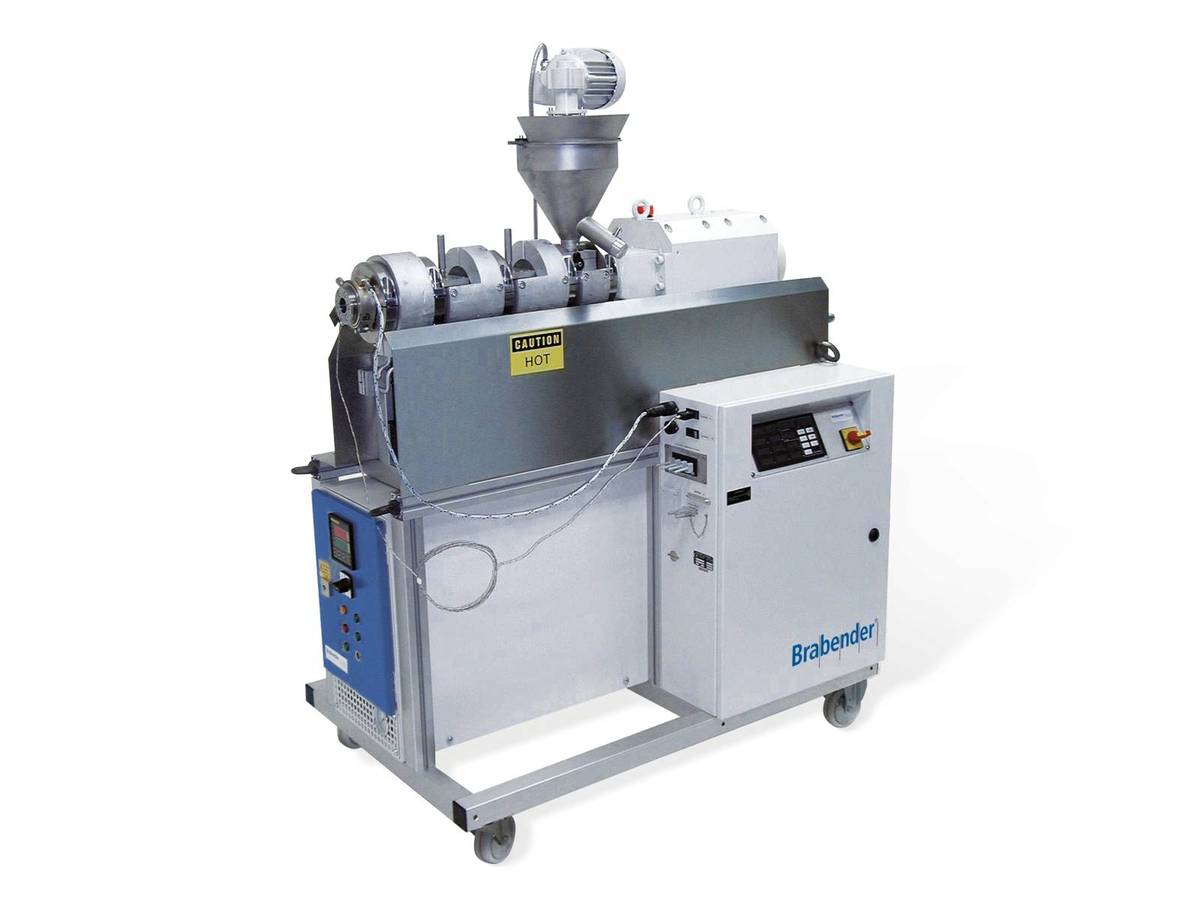

Twin Screw Extruders Docking Station

Available on backorder

Features:

  • Modular conception of screws and barrels
  • Easy and low-cost adaptation of the system configuration to the individual processing task
  • Throughputs up to 60 kg/h
  • Applications from material development up to small-scale production of profiles
SKU: BRA-Docking Station-Twin Screw Extruders Category: Tags: , ,

Specifications:

Type Ø  [mm] Length Material Max. Temp. [°C] Output [kg/h] Drive Special features

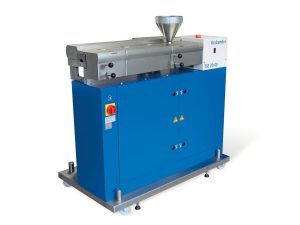

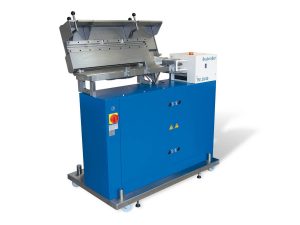

TSE  20 20  40 D screw segmented All flowable 400 0.5 – 20 Plastograph®, Lab-Station corotating
DSE 25 25 16 – 52 D fully segmented All flowable,
esp. PVC
450 0.5 – 40 Lab-Station co-/counter-rotating
DSE 35 35 12 D, 17 D screw fully segmented in corotating version All flowable, esp. PVC (in 17 D) 450 1 – 60 Lab-Station co-/counter-rotating

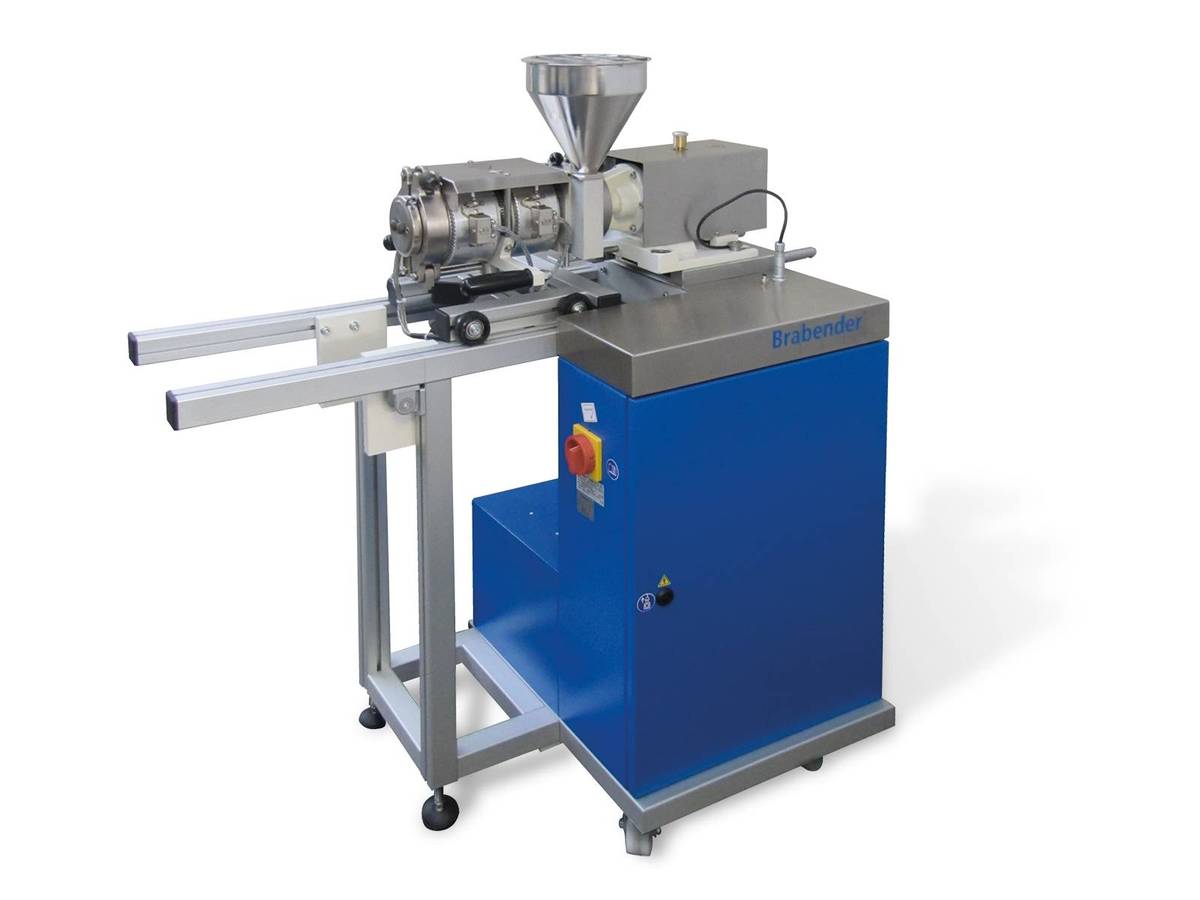

DSK 42/6 42 6 D All flowable 350 1 – 5 Lab-Station cont. mixer, counter-rotating
KDSE 42/28 350 mm esp. PVC 350 1 – 5 Lab-Station conical, counter-rotating



Catalogue: PDF
