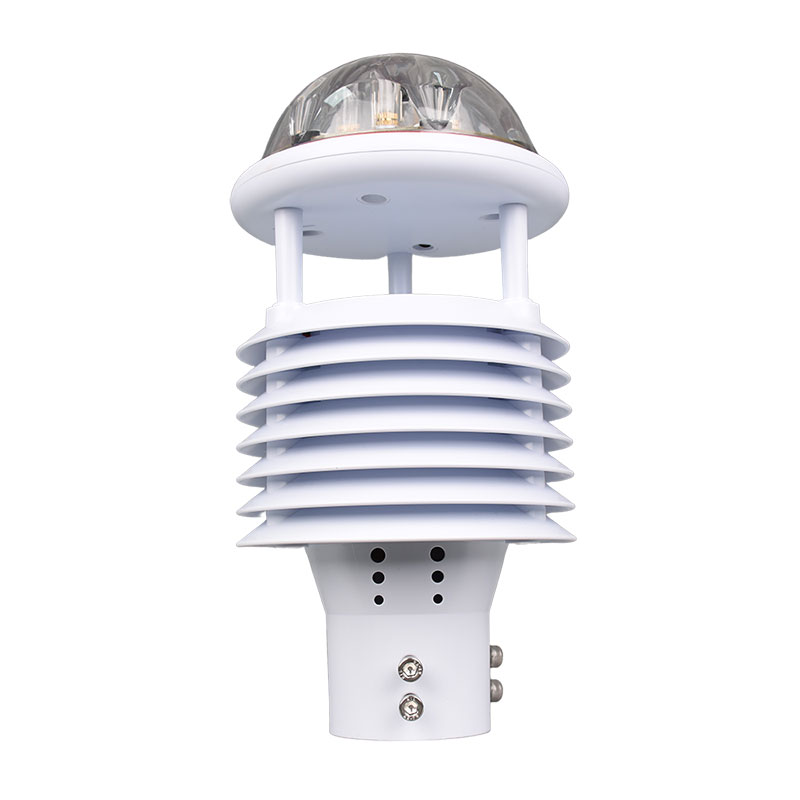

Ultrasonic Weather Station FT-WQX10

Features :

The wind monitor sensors are hidden at the top of instrument, compared with the one at down side and outside, it is more clean, specially in snow or raining circumstances. We use the continuous frequency conversion principle to measure the data. By the phase discrimination and phase demodulation principle to confirm the wind specifications. We got two patents for this sensor.
10 parameters in 1 instrument.
No need to calibrate the instrument.
Advanced sensor technology, real-time measurement, no start-up wind speed.
Highly integrated, no moving parts, zero wear rate, maintenance-free.
ASA engineering plastic shell, it can protect the instrument from ultraviolet ray and other radiation.
Wireless transmission is optional, minimum transmission interval is 60s. Every 60s will update the data online. Other transmissions are instant.
The probe is designed with clip-type, so when transportation will not be loose.

Specifications :

FT-WQX10
Item	Range	Resolution	Accuracy	Principle
Wind Speed	0～60m/s	0.01m/s	±0.3m/s	Ultrasonic
Wind Direction	0～360°	1°	±2°	Ultrasonic
Temperature	-40℃～60℃	0.01℃	±0.3℃	Diode
Humidity	0～100%RH	0.1%RH	±3%RH	Capacitance
Pressure	300hPa～1100hPa	0.01hPa	±0.5%hPa	Piezoresistive
Rainfall	0～4mm/min	0.1mm	±5%	Optics
Illuminance	0-200klux	10lux	±5%	Photoelectric Effect
Noise	30-120dB	0.1dB	±1.5dB	Piezoresistive Sensor
PM2.5	0-1000μg/m³	1μg/m³	±10%(<500μg)	Light Scattering
PM10	0-1000μg/m³	1μg/m³	±10%(<500μg)	Light Scattering
Supply	DC12-24V/Solar Power(Option)
Output	RS485(RS232, Option)
Communication Mode	Modbus-RTU
Power	＜1W
Operation TEMP	-40℃～85℃
IP Grade	IP66
Material	ASA engineering plastic
Net Weight	0.75kg
Packing Size	385250220mm
Option-1	GPS
Option-2	Electronic Compass
Patent	Hidden sensor at top, patent no. ZL 2020 2 3215713.X. Continuous frequency conversion ultrasonic principle, patent no. ZL 2020 2 3215649.5. Wind Speed, Wind Direction, Ambient Temperature, Relative Humidity, Barometric Pressure, Rainfall, Illuminance, Noise, PM2.5, PM10, 10 parameters in 1, patent no. ZL 2020 2 3215649.5.
Certificate	CE, RoHS, EMC, LVD, ISO9001, ISO14001

Catalog : PDF
