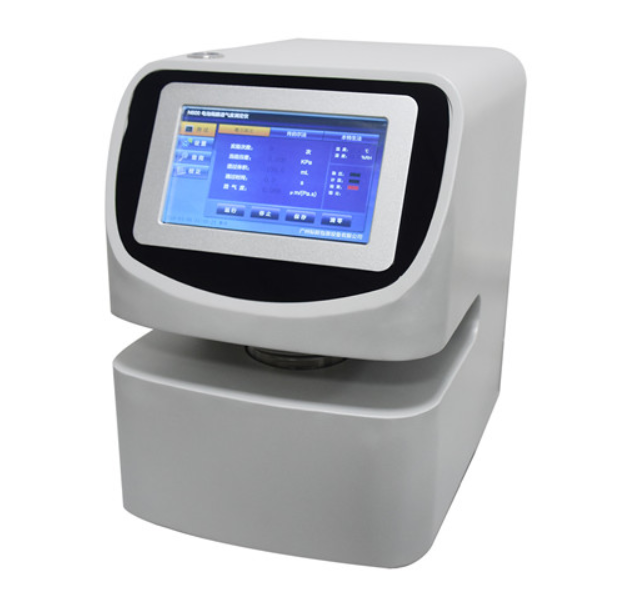

Battery Diaphragm Air Permeability Tester N600

Features :

The three test methods: Gurley method, Schopper Method, and Bendtsen method are integrated into one machine for users to choose freely to meet the test needs of different users.
The pressure difference of the instrument is adjustable in the range of 0-3KPa, and the accuracy is 0.01kPa, which fully meets the test pressure requirements of the three methods.
The instrument has a large test volume of 1L, which fully meets the volume requirements of the three methods.
Free conversion between test area 10.0cm2 and 6.42cm2 by adding a mask.
The instrument comes with a temperature and humidity sensor to monitor the temperature and humidity of the test chamber in real time.
The instrument has good sealing performance and the air leakage volume does not exceed 1.0ml / h.
The instrument comes with a display screen and PC software, which can be operated offline or connected to a computer for simultaneous testing.
