Research Scientific Laboratory Microscope Semi-Auto 12V100W Halogen A12.1093-H

Specifications :

Model No. A12.1093-H
Function BF
Feature Infinity

Motorized Control

Coding Nosepiece

ECO(Auto Power Off)

New Product Year 2020
Optical System Infinity Plan
Standard Magnification 40x-1000x
Optional Magnification 40x-2000x

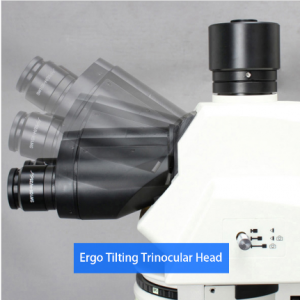

Head Type Seidentopf Trinocular
Head Inclination 0-350 Tiltable
Head Rotation Head Rotate 3600
Head Interpupillary 47~78mm
Head Light Path Switch E100:P0/E20:P80/E0:P100
Eyepiece Features Super Wide Field > 22m

Diopter Adjustable

Eyepiece Diameter 30mm
Eyepiece EW10x/25mm, 2pcs
Nosepiece Holes 6 Holes
Nosepiece Features Backward

With DIC Slot

With Polarizing Slot

Coded

Objective Type Infinity Plan
Objective NIS60 Infinity Plan Objective

4x/0.10, W.D. 30mm
10x/0.25, W.D. 10.2mm

20x/0.40, W.D. 12mm

40x/0.65, W.D. 0.7mm

100x/1.25(Oil), W.D. 0.2mm

Working Stage Type Double Layers Mechanical
Working Stage Feature Large Size>140x140mm

Knob Switchable Left/Right

Knob Height Position Adjustable

Safety Round Edge

Working Stage Size 190x152mm
Working Stage Moving 76x32mm

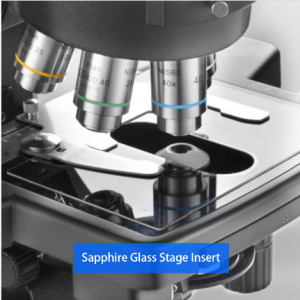

Working Stage Spec. With Sapphire Crystal Glass Insert
Focusing Features Safety Stop Crew

Tension Adjustable

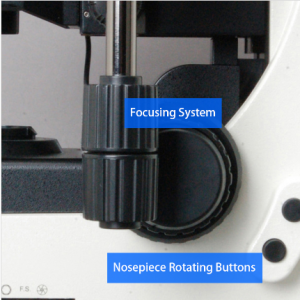

Focusing Type Coaxial Coarse & Fine
Focusing Range 35mm
Focusing Scale 0.001mm
Focusing Knob Can Exchange Hand Wheel Between Left/Right
Condenser Type Swing-Out
Condenser N.A 0.9/0.25
Condenser Features Rack & Pinion Up/Down

Center Adjustable

Slot For Dark Field Slide

Slot For Phase Contrast Slide

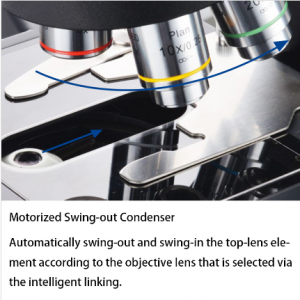

Condenser Spec. Auto Swing-Out Condenser
Light Source Feature Brightness Adjustable

Kohler Illumination

LED 3W

Light Source Type LED
Transmit Light 3W S-LED Light, Built-in Main Body, ECO Function
Power Supply Type AC 100-200V Wide Voltage

Power Cord Detachable

Function Upgradeable Dark Field

Polarizing

Phase Contrast

Fluorescent

Metallurgical

Other Spec. Remote Control Pad, Shortcut Button To Motor Switch Objectives

Catalogue : PDF
