Specifications:

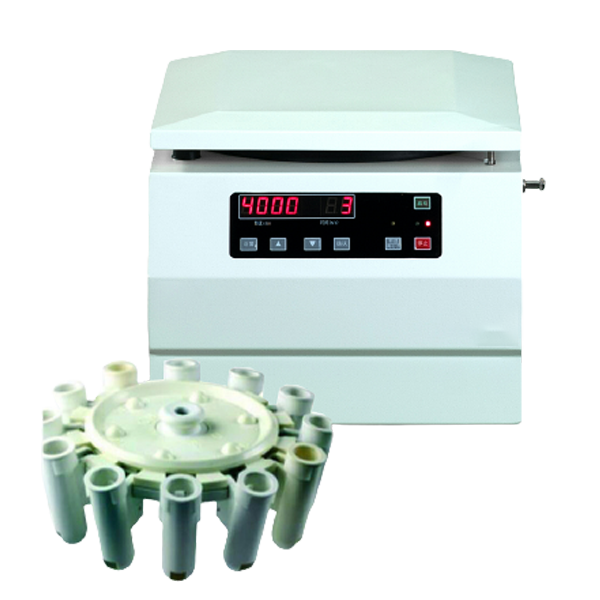

ApplicationsTP4M immune blood centrifuge is dedicated red blood cell cleaning / SERO rotor, special lymphocyte cleaning / HLA rotor.
Technical Parameter
|
Model
|
TP4M
|
|
|
Rotor Type
|
Lymphocyte cleaning Rotor /HLA
|
Red blood cell cleaning /SERO
|
|
Max RCF
|
2000×g
|
1000×g
|
|
Max Capacity
|
12×（0.25-1ml）
|
12×5/7ml
|
|
Max Speed
|
4000rpm
|
|
|
Revolutions/min
|
±10r/min
|
|
|
Voltage
|
AC 220±22V 50/60Hz 10A
|
|
|
Power
|
100W
|
|
|
Noise Level
|
≤ 60dB（A）
|
|
|
Chamber Diameter
|
Φ280mm
|
|
|
Dimensions
(L x W x H) |
385×320×270 (mm)
|
|
|
Packaging dimensions
|
460×390×330 (mm)
|
|
|
Net Weight
|
15kg
|
|
|
Rotor
|
No.
|
RCF
|
Time
|
Usage
|
|
Lymphocyte cleaning Rotor / HLA
|
1
|
2000×g
|
180s
|
Lymphocyte separation, culture cell separation
|
|
1000×g
|
3s
|
Platelet removal
|
||
|
1000×g
|
60s
|
Lymphocyte cleaning
|
||
|
Red blood cell cleaning Rotor / SERO
|
2
|
500×g
|
60s
|
Blood type determination, blood cell agglutination reaction observation
|
|
1000×g
|
15s
|
Cross-fit test,
|
||
|
1000×g
|
60s
|
Blood cell cleaning,
serum plasma extraction |
Catalogue: PDF
