Specifications:
| Probes | Convex probe | 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz, | |
| Linear probe | 6.0MHz/6.5MHz/7.5MHz/10.0MHz/12.0MHz, | ||
| Trans-vaginal probe | 5.0MHz/6.0MHz/6.5MHz/7.5MHz/9.0MHz, | ||
| R15 Micro convex probe | 5.5MHz/6.0MHz/6.5MHz/7.5MHz/9.0MHz, | ||
| 4D Volume probe | 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz | ||

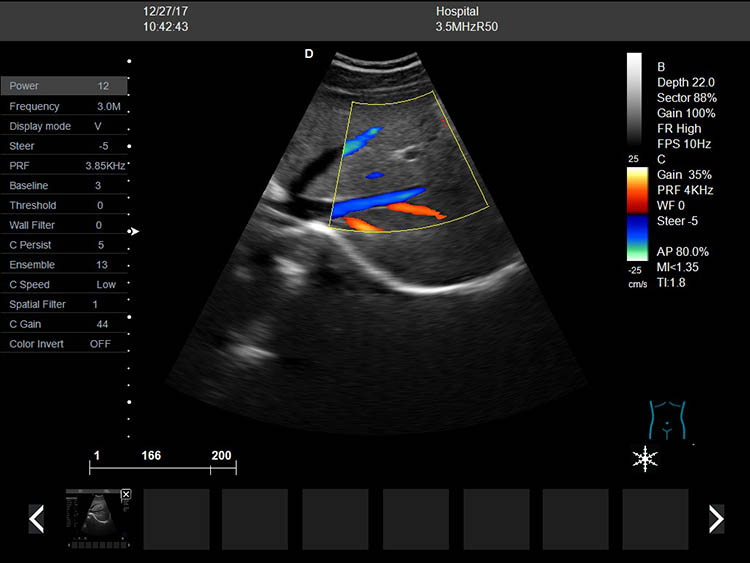

| Color imaging mode | Color frequency | ≥5 frequency conversion, visible adjustable | |
| Color deflection | equipped with | ||
| C afterglow | 8, visible and adjustable | ||
| Color map | 7, visible and adjustable | ||
| Color reversal | adjustable | ||
| B/C split screen synchronous display function | equipped with | ||
| Color baseline | 7, visible and adjustable | ||
| Color line density | adjustable | ||
| Two-dimensional imaging mode | Gain | 0-100, step 2 visible adjustable | |
| TGC | 8 segment adjustable | ||
| Image optimization | visible and adjustable over 6 levels | ||
| Dynamic range | 0-270dB 15 level visual adjustable | ||
| False color | 7, visible and adjustable | ||
| Smooth treatment | 8, visible and adjustable | ||
| Edge enhancement | 8, visible and adjustable | ||
| Sound power | 0-15, step 7%, visible adjustable | ||
| Display depth | ≥ 320mm | ||
| Maximum focus number4 focal points, which can be moved throughout the whole process. Scan line density 256 visible tunable | |||
| Gray scale | 1-16 level visible visible and adjustable | ||
| Filtering | 3 kinds | ||
| Scanning range | 50%-100% | ||
| Frame correlation | 0-4 level, visible and adjustable | ||
| Spectrum Doppler mode | Sampling volume angle correction | -80 degree to 80 degree adjustable | |
| Sample volume | 0.5mm-48mm visually adjustable | ||
| Frequency | ≥ 5, visible and adjustable | ||
| Baseline | 7 adjustable | ||
| Smooth | 8 files can be adjusted | ||
| Maximum display blood flow measurement speed | 25m/s | ||
| minimum resolvable blood flow measurement speed | 0.1mm/s | ||
| False color | 7 kinds of adjustable | ||
| Measurement and analysis function | v General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc. | ||
| v Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid artery, Urology, heart. | |||
| Graphic and text management system | v Host built in ≥ 120G solid state hard disk to start fast and stable | ||
| v Movie playback: 600 frames | |||
| v Internal patient file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, | |||
| v The type of report is 3. Provide picture proof. | |||
| v One key fast report graphic and text management | |||
| Interface | USB interface | 2 | |
| VGA interface | 1 | ||
| RJ-45 interface | 1 | ||
| VIDEO interface | 1 | ||
| Grounding wire interface | 1 | ||
