GBPI Testing Instruments

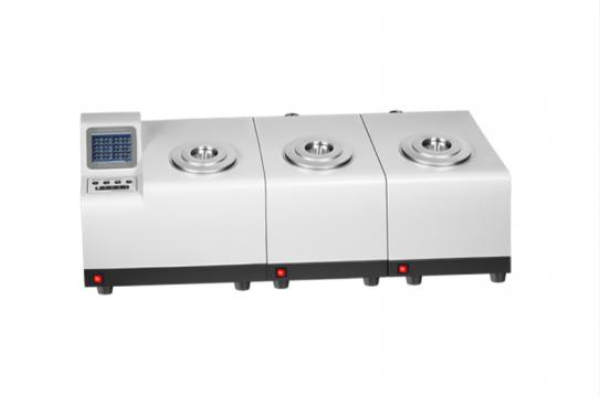

Water Vapor Permeability Analyzer W303

Features :

Work independently by touch screen.
High-precision sensors with over-range protection, continuous data collection, accurate and reliable data.
Temperature system uses electronic technology intermittence control, highly precise.
Uses the wet and dry gas ratio control humidity.
Simple operation, with the function of parameter setting and error automatic correction function.
Parameter coded lock: automatically lock the parameter while testing.
Software real-time display each curve state: temperature, humidity, weight, permeation rate. With function of data storage, convenient for analysis the experimental results.
Can be connected to computer through serial port; can export professional test report as Office Word or PDF.

Specifications :

Items W303
Chamber 3
WVTR Test Range 0.01~10000 g/ m2 · 24h
Resolution ratio 0.001 g/ m2 · 24h°C
Test Temperature range 10°C~50°C
Test Temperature accuracy ±0.1°C
Humidity range dry method: 0~20%RH (optional: dual gas flow method: 30~90%RH)
Humidity accuracy ±2%RH
Test Sample thickness ≤2mm
Test Sample Area Φ90mm ,transmission area 50.24cm2
Sample qty 3piece
Power supply AC 220V/50Hz

Catalog : PDF
