Specifications:
|
Specifications
|

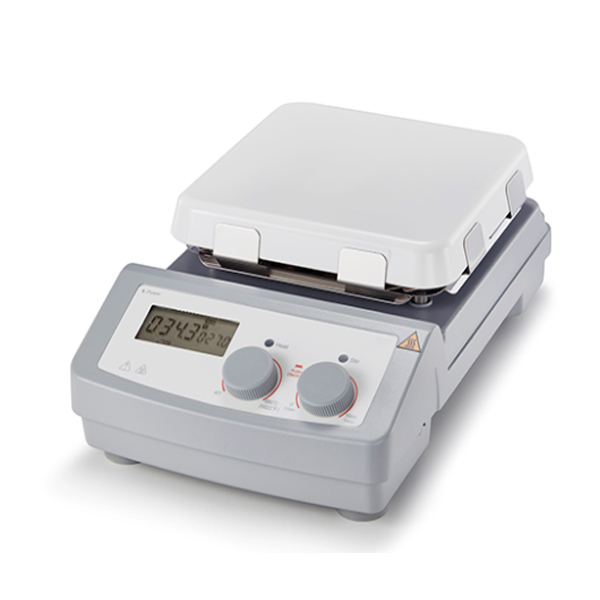

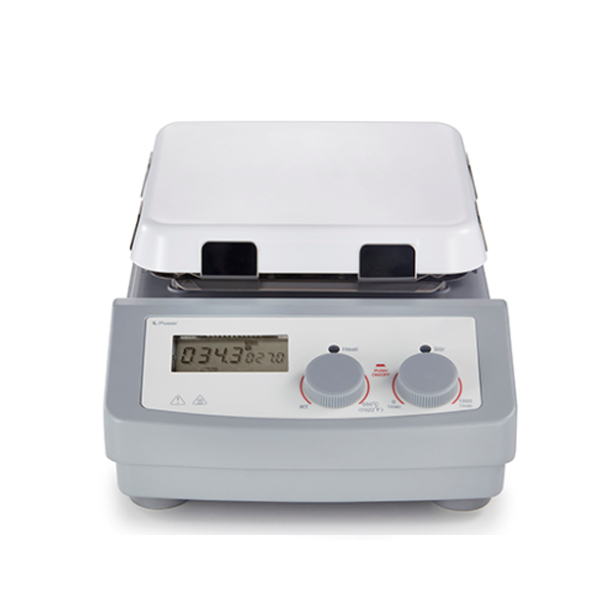

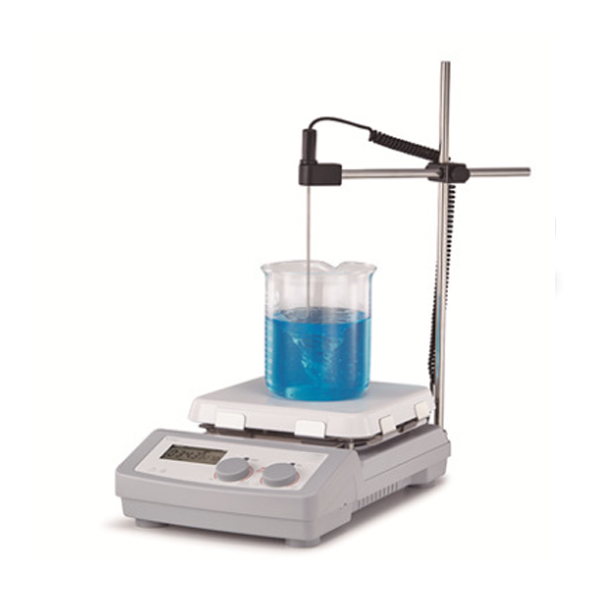

MS7-H550-Pro
|
|
Work plate Dimension [W x D]
|
184x184mm (7 inches)
|
|
Work plate material
|
Glass-ceramic
|
|
Motor type
|
Brushless DC motor
|
|
Motor rating input
|
18W
|
|
Motor rating output
|
10W
|
|
Power
|
1050W
|
|
Heating output
|
1000W
|
|
Voltage
|
100-120/200-240V 50/60Hz
|
|
Stirring positions
|
1
|
|
Max. stirring quantity, [H2O]
|
20L
|
|
Max. magnetic bar[length]
|
80mm
|
|
Speed range
|
100-1500rpm
resolution ±1rpm |
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Heating temperature range
|
Room Temp.-550°C, increment 1°C
|
|
Temperature control accuracy
|
±1 °C (<100°C) ±1%(>100°C)
|
|
Overheating protection
|
580°C
|
|
Temperature display accuracy
|
±0.1°C
|
|
External temperature sensor
|
PT1000 (accuracy ±0.2)
|
|
“Hot” warning
|
50°C
|
|
Data connector
|
RS232
|
|
Protection class
|
IP21
|
|
Dimension [WxDxH]
|
215x360x112mm
|
|
Weight
|
5.3kg
|
|
Permissible ambient temperature and humidity
|
5-40°C, 80%RH
|
Catalogue: PDF
